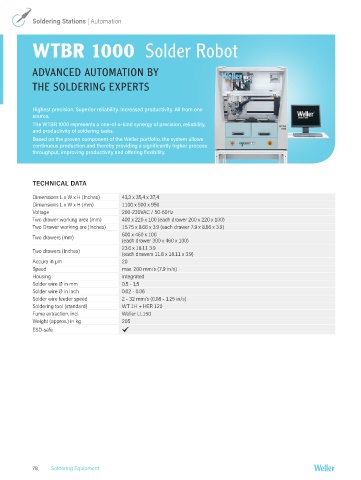

Page 78 - weller

Soldering Stations | Automation

WTBR 1000 Solder Robot

ADVANCED AUTOMATION BY
THE SOLDERING EXPERTS

Highest precision. Superior reliability. Increased productivity. All from one
source.
The WTBR 1000 represents a one-of-a-kind synergy of precision, reliability,
and productivity of soldering tasks.
Based on the proven component of the Weller portfolio, the system allows
continuous production and thereby providing a significantly higher process
throughput, improving productivity and offering flexibility.

TECHNICAL DATA

Dimensions L x W x H (Inches) 43,3 x 35,4 x 37,4
Dimensions L x W x H (mm) 1100 x 900 x 950
Voltage 200-230VAC / 50-60Hz
Two drawer working area (mm) 400 x 220 x 100 (each drawer 200 x 220 x 100)
Two Drawer working are (Inches) 15.75 x 8.66 x 3.9 (each drawer 7.9 x 8.66 x 3.9)
600 x 460 x 100
Two drawers (mm)
(each drawer 300 x 460 x 100)
Two drawers (Inches) 23.6 x 18.11 3.9
(each drawers 11.8 x 18.11 x 3.9)
Accura in µm 20
Speed max. 200 mm/s (7.9 in/s)
Housing Integrated
Solder wire Ø in mm 0,5 - 1,5
Solder wire Ø in Inch 0.02 - 0.06
Solder wire feeder speed 2 - 32 mm/s (0.08 - 1.25 in/s)
Soldering tool (standard) WT 1H + HER 120
Fume extraction, incl. Weller LL150
Weight (approx.) in kg 205
ESD-safe .

78 Soldering Equipment
