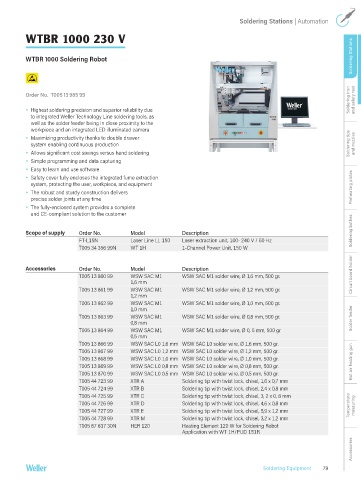

Page 79 - weller
P. 79
Soldering Stations | Automation
WTBR 1000 230 V
Soldering Stations
WTBR 1000 Soldering Robot
Soldering iron and safety rest
Order No. T005 13 985 99
Highest soldering precision and superior reliability due
to integrated Weller Technology Line soldering tools, as
well as the solder feeder being in close proximity to the
workpiece and an integrated LED illuminated camera
Maximizing productivity thanks to double drawer
system enabling continuous production Soldering tips and nozzles
Allows significant cost savings versus hand soldering
Simple programming and data capturing
Easy to learn and use software
Safety cover fully encloses the integrated fume extraction
system, protecting the user, workpiece, and equipment
The robust and sturdy construction delivers Preheating plates
precise solder joints at any time
The fully-enclosed system provides a complete
and CE-compliant solution to the customer
Scope of supply Order No. Model Description Soldering bathes
FT-L15N Laser Line LL 150 Laser extraction unit, 100- 240 V / 60 Hz
T005 34 356 99N WT 1H 1-Channel Power Unit, 150 W
Accessories Order No. Model Description
T005 13 860 99 WSW SAC M1 WSW SAC M1 solder wire, Ø 1,6 mm, 500 gr. Circuit board holder
1,6 mm
T005 13 861 99 WSW SAC M1 WSW SAC M1 solder wire, Ø 1,2 mm, 500 gr.
1,2 mm
T005 13 862 99 WSW SAC M1 WSW SAC M1 solder wire, Ø 1,0 mm, 500 gr.
1,0 mm
T005 13 863 99 WSW SAC M1 WSW SAC M1 solder wire, Ø 0,8 mm, 500 gr. Solder feeder
0,8 mm
T005 13 864 99 WSW SAC M1 WSW SAC M1 solder wire, Ø 0, 5 mm, 500 gr
0,5 mm
T005 13 866 99 WSW SAC L0 1,6 mm WSW SAC L0 solder wire, Ø 1,6 mm, 500 gr.
T005 13 867 99 WSW SAC L0 1,2 mm WSW SAC L0 solder wire, Ø 1,2 mm, 500 gr.
T005 13 868 99 WSW SAC L0 1,0 mm WSW SAC L0 solder wire, Ø 1,0 mm, 500 gr.
T005 13 869 99 WSW SAC L0 0,8 mm WSW SAC L0 solder wire, Ø 0,8 mm, 500 gr. Hot air heating gun
T005 13 870 99 WSW SAC L0 0,5 mm WSW SAC L0 solder wire, Ø 0,5 mm, 500 gr.
T005 44 723 99 XTR A Soldering tip with twist lock, chisel, 1,6 x 0,7 mm
T005 44 724 99 XTR B Soldering tip with twist lock, chisel, 2,4 x 0,8 mm
T005 44 725 99 XTR C Soldering tip with twist lock, chisel, 3, 2 x 0, 8 mm
T005 44 726 99 XTR D Soldering tip with twist lock, chisel, 4,6 x 0,8 mm Temperature measuring
T005 44 727 99 XTR E Soldering tip with twist lock, chisel, 5,9 x 1,2 mm
T005 44 728 99 XTR M Soldering tip with twist lock, chisel, 3,2 x 1,2 mm
T005 87 637 30N HER 120 Heating Element 120 W for Soldering Robot
Application with WT 1H/PUD 151R
Accessories
Soldering Equipment 79
