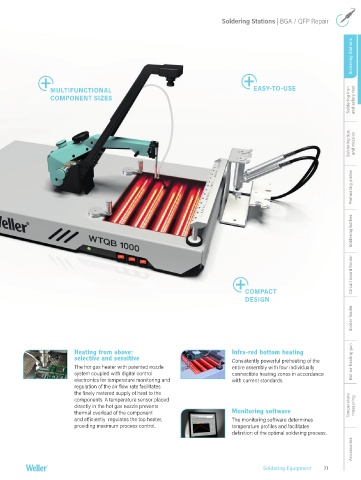

Soldering Stations | BGA / QFP Repair

Soldering Stations

MULTIFUNCTIONAL EASY-TO-USE
COMPONENT SIZES Soldering iron and safety rest

Soldering tips and nozzles

Preheating plates

Soldering bathes

Circuit board holder

COMPACT
DESIGN
Solder feeder

Heating from above: Infra-red bottom heating
selective and sensitive Consistently powerful preheating of the
The hot gas heater with patented nozzle entire assembly with four individually Hot air heating gun
system coupled with digital control connectible heating zones in accordance
electronics for temperature monitoring and with current standards.
regulation of the air flow rate facilitates
the finely metered supply of heat to the
components. A temperature sensor placed
directly in the hot gas nozzle prevents Temperature measuring
thermal overload of the component Monitoring software
and efficiently regulates the top heater, The monitoring software determines
providing maximum process control. temperature profiles and facilitates
definition of the optimal soldering process.
Accessories

Soldering Equipment 71
