Soldering Stations | WT Line

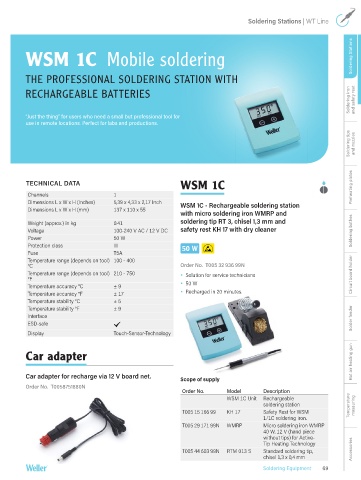

WSM 1C Mobile soldering Soldering Stations
THE PROFESSIONAL SOLDERING STATION WITH
Soldering iron and safety rest
RECHARGEABLE BATTERIES
“Just the thing” for users who need a small but professional tool for
use in remote locations. Perfect for labs and productions.
Soldering tips and nozzles
TECHNICAL DATA WSM 1C Preheating plates
Channels 1
Dimensions L x W x H (Inches) 5,39 x 4,33 x 2,17 Inch WSM 1C - Rechargeable soldering station
Dimensions L x W x H (mm) 137 x 110 x 55
with micro soldering iron WMRP and
Weight (approx.) in kg 0.41 soldering tip RT 3, chisel 1,3 mm and
Voltage 100-240 V AC / 12 V DC safety rest KH 17 with dry cleaner Soldering bathes
Power 50 W
Protection class III 50 W
Fuse T5A
Temperature range (depends on tool) 100 - 400
°C Order No. T005 32 936 99N
Temperature range (depends on tool) 210 - 750 Solution for service technicians
°F Circuit board holder
Temperature accuracy °C ± 9 50 W
Temperature accuracy °F ± 17 Recharged in 20 minutes.
Temperature stability °C ± 5
Temperature stability °F ± 9
Interface Solder feeder
ESD-safe .
Display Touch-Sensor-Technology
Car adapter Hot air heating gun
Car adapter for recharge via 12 V board net. Scope of supply
Order No. T0058751880N
Order No. Model Description
WSM 1C Unit Rechargeable
soldering station Temperature measuring
T005 15 166 99 KH 17 Safety Rest for WSM
1/1C soldering iron.
T005 29 171 99N WMRP Micro soldering iron WMRP
40 W, 12 V (hand piece
without tips) for Active-
Tip Heating Technology
T005 44 603 99N RTM 013 S Standard soldering tip, Accessories
chisel 1,3 x 0,4 mm
