WE Line Soldering Stations | WE Line

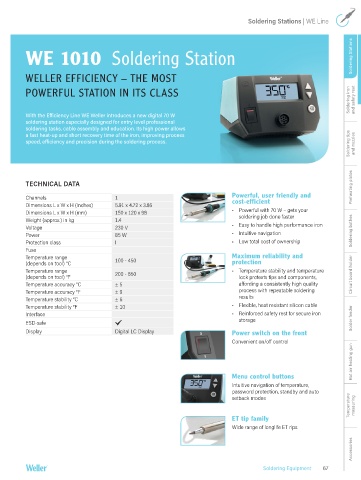

WE 1010 Soldering Station Soldering Stations

WELLER EFFICIENCY – THE MOST
Soldering iron and safety rest
POWERFUL STATION IN ITS CLASS

With the Efficiency Line WE Weller introduces a new digital 70 W
soldering station especially designed for entry level professional
soldering tasks, cable assembly and education. Its high power allows
a fast heat-up and short recovery time of the iron, improving process
speed, efficiency and precision during the soldering process. Soldering tips and nozzles

TECHNICAL DATA Preheating plates

Channels 1 Powerful, user friendly and
Dimensions L x W x H (Inches) 5.91 x 4.72 x 3.86 cost-efficient
Dimensions L x W x H (mm) 150 x 120 x 98 • Powerful with 70 W – gets your
Weight (approx.) in kg 1.4 soldering job done faster
Voltage 230 V • Easy to handle high performance iron
Power 85 W • Intuitive navigation Soldering bathes
Protection class I • Low total cost of ownership
Fuse
Temperature range 100 - 450 Maximum reliability and
(depends on tool) °C protection
Temperature range 200 - 850 • Temperature stability and temperature
(depends on tool) °F lock protexts tips and components, Circuit board holder
Temperature accuracy °C ± 5 affording a consistently high quality
Temperature accuracy °F ± 9 process with repeatable soldering
Temperature stability °C ± 6 results
Temperature stability °F ± 10 • Flexible, heat resistant silicon cable
Interface • Reinforced safety rest for secure iron
ESD-safe . storage Solder feeder
Display Digital LC Display Power switch on the front
Convenient on/off control
Hot air heating gun

Menu control buttons
Intuitive navigation of temperature,
password protection, standby and auto
Temperature measuring
setback modes

ET tip family
Wide range of longlife ET rips

Accessories

Soldering Equipment 67
