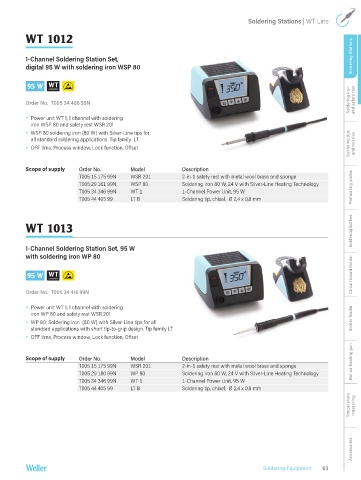

Page 63 - weller
P. 63
Soldering Stations | WT Line
WT 1012
1-Channel Soldering Station Set, Soldering Stations
digital 95 W with soldering iron WSP 80
95 W
Soldering iron
Order No. T005 34 406 99N and safety rest
Power unit WT 1, 1 channel with soldering
iron WSP 80 and safety rest WSR 201
WSP 80 soldering iron (80 W) with Silver-Line tips for
all standard soldering applications. Tip family: LT
OFF time, Process window, Lock function, Offset Soldering tips and nozzles
Scope of supply Order No. Model Description
T005 15 175 99N WSR 201 2-in-1 safety rest with metal wool brass and sponge
T005 29 161 99N WSP 80 Soldering iron 80 W, 24 V with Silver-Line Heating Technology
T005 34 346 99N WT 1 1-Channel Power Unit, 95 W Preheating plates
T005 44 405 99 LT B Soldering tip, chisel, Ø 2,4 x 0,8 mm
Soldering bathes
WT 1013
1-Channel Soldering Station Set, 95 W
with soldering iron WP 80
Circuit board holder
95 W
Order No. T005 34 416 99N
Power unit WT 1, 1 channel with soldering
iron WP 80 and safety rest WSR 201
WP 80: Soldering iron (80 W) with Silver-Line tips for all Solder feeder
standard applications with short tip-to-grip design. Tip family LT
OFF time, Process window, Lock function, Offset
Scope of supply Order No. Model Description
T005 15 175 99N WSR 201 2-in-1 safety rest with metal wool brass and sponge Hot air heating gun
T005 29 180 99N WP 80 Soldering iron 80 W, 24 V with Silver-Line Heating Technology
T005 34 346 99N WT 1 1-Channel Power Unit, 95 W
T005 44 405 99 LT B Soldering tip, chisel, Ø 2,4 x 0,8 mm
Temperature measuring
Accessories
Soldering Equipment 63
