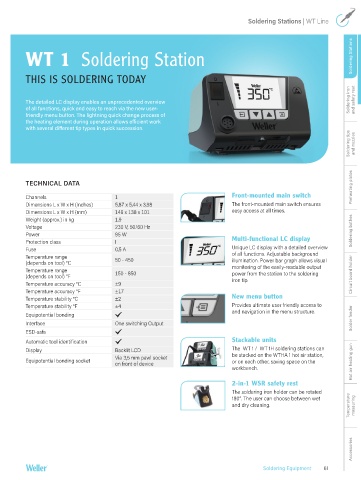

Page 61 - weller

Soldering Stations | WT Line

WT 1 Soldering Station Soldering Stations

THIS IS SOLDERING TODAY
Soldering iron
and safety rest
GENERATION WT
The detailed LC display enables an unprecedented overview [Weller Technology]
of all functions, quick and easy to reach via the new user-
friendly menu button. The lightning quick change process of
the heating element during operation allows efficient work
GENERATION WT
with several different tip types in quick succession. [Weller Technology]
Soldering tips
and nozzles
The next level of hand soldering and hot air rework.

Preheating plates
TECHNICAL DATA The next level of hand soldering and hot air rework.

Channels 1 Front-mounted main switch
Dimensions L x W x H (Inches) 5,87 x 5,44 x 3,98 The front-mounted main switch ensures
Dimensions L x W x H (mm) 149 x 138 x 101 easy access at all times.
Weight (approx.) in kg 1.9
Voltage 230 V, 50/60 Hz
Power 95 W Soldering bathes
Protection class I Multi-functional LC display
Fuse 0,5 A Unique LC display with a detailed overview
Temperature range 50 - 450 of all functions. Adjustable background
(depends on tool) °C illumination. Power bar graph allows visual
Temperature range 150 - 850 monitoring of the easily-readable output
(depends on tool) °F power from the station to the soldering Circuit board holder
Temperature accuracy °C ±9 iron tip.
Temperature accuracy °F ±17
Temperature stability °C ±2 New menu button
Temperature stability °F ±4 Provides ultimate user friendly access to
and navigation in the menu structure.
Equipotential bonding . [Weller Technology] Solder feeder
Interface One switching Output GENERATION WT
ESD-safe . The next level of hand soldering and hot air rework.
Automatic tool identification . Stackable units
Display Backlit LCD The WT 1 / WT 1H soldering stations can
Via 3,5 mm pawl socket be stacked on the WTHA 1 hot air station,
Equipotential bonding socket or on each other, saving space on the
on front of device Hot air heating gun
workbench.
2-in-1 WSR safety rest
Introducing the high performance
Introducing the high performance
WTP90 soldering pencil The soldering iron holder can be rotated
WTP90 soldering pencil 180°. The user can choose between wet
and dry cleaning. Temperature measuring

Accessories

Introducing the high performance
WTP90 soldering pencil Soldering Equipment 61
