Soldering Stations | WT Line

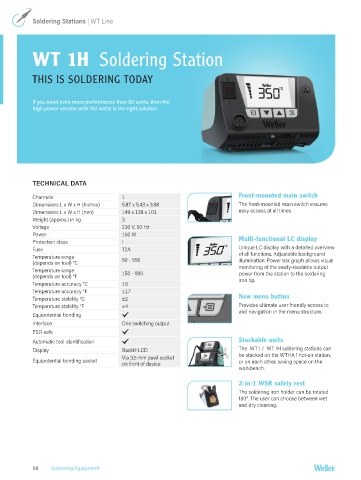

WT 1H Soldering Station

THIS IS SOLDERING TODAY

If you need even more performance than 90 watts, then the [Weller Technology]
high power version with 150 watts is the right solution. GENERATION WT

GENERATION WT
[Weller Technology]

The next level of hand soldering and hot air rework.

TECHNICAL DATA The next level of hand soldering and hot air rework.

Channels 1 Front-mounted main switch
Dimensions L x W x H (Inches) 5.87 x 5.43 x 3.98 The front-mounted main switch ensures
Dimensions L x W x H (mm) 149 x 138 x 101 easy access at all times.
Weight (approx.) in kg 3
Voltage 230 V, 50 Hz
Power 150 W
Protection class I Multi-functional LC display
Fuse T2A Unique LC display with a detailed overview
Temperature range 50 - 550 of all functions. Adjustable background
(depends on tool) °C illumination. Power bar graph allows visual
Temperature range 150 - 999 monitoring of the easily-readable output
(depends on tool) °F power from the station to the soldering
Temperature accuracy °C ±9 iron tip.
Temperature accuracy °F ±17
Temperature stability °C ±2 New menu button
Temperature stability °F ±4 Provides ultimate user friendly access to
and navigation in the menu structure.
Equipotential bonding . [Weller Technology]
Interface One switching output GENERATION WT
ESD-safe . The next level of hand soldering and hot air rework.
Automatic tool identification . Stackable units
Display Backlit LCD The WT 1 / WT 1H soldering stations can
Via 3,5 mm pawl socket be stacked on the WTHA 1 hot-air station,
Equipotential bonding socket or on each other, saving space on the
on front of device
workbench.
2-in-1 WSR safety rest
Introducing the high performance
Introducing the high performance
WTP90 soldering pencil The soldering iron holder can be rotated
WTP90 soldering pencil 180°. The user can choose between wet
and dry cleaning.

Introducing the high performance
58 Soldering Equipment
WTP90 soldering pencil
