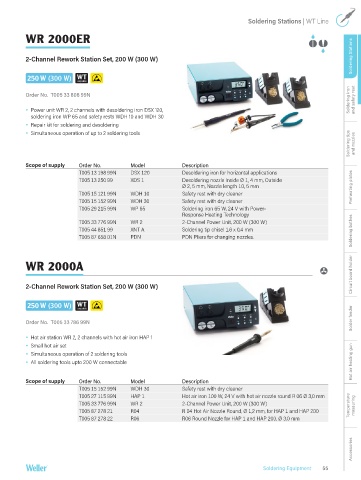

P. 55
Soldering Stations | WT Line
WR 2000ER
Soldering Stations
2-Channel Rework Station Set, 200 W (300 W)
250 W (300 W)
Soldering iron and safety rest
Order No. T005 33 808 99N
Power unit WR 2, 2 channels with desoldering iron DSX 120,
soldering iron WP 65 and safety rests WDH 10 and WDH 30
Repair kit for soldering and desoldering
Soldering tips and nozzles
Simultaneous operation of up to 2 soldering tools
Scope of supply Order No. Model Description
T005 13 198 99N DSX 120 Desoldering iron for horizontal applications
T005 13 250 99 XDS 1 Desoldering nozzle Inside Ø 1, 4 mm, Outside
Ø 2, 5 mm, Nozzle length 10, 5 mm Preheating plates
T005 15 121 99N WDH 10 Safety rest with dry cleaner
T005 15 152 99N WDH 30 Safety rest with dry cleaner
T005 29 215 99N WP 65 Soldering iron 65 W, 24 V with Power-
Response Heating Technology
T005 33 776 99N WR 2 2-Channel Power Unit, 200 W (300 W)
T005 44 851 99 XNT A Soldering tip chisel 1,6 x 0,4 mm Soldering bathes
T005 87 658 01N PDN PDN Pliers for changing nozzles.
WR 2000A Circuit board holder
2-Channel Rework Station Set, 200 W (300 W)
250 W (300 W)
Solder feeder
Order No. T005 33 786 99N
Hot air station WR 2, 2 channels with hot air iron HAP 1
Small hot air set
Simultaneous operation of 2 soldering tools
All soldering tools upto 200 W connectable Hot air heating gun
Scope of supply Order No. Model Description
T005 15 152 99N WDH 30 Safety rest with dry cleaner
T005 27 115 99N HAP 1 Hot air iron 100 W, 24 V with hot air nozzle round R 06 Ø 3,0 mm
T005 33 776 99N WR 2 2-Channel Power Unit, 200 W (300 W) Temperature measuring
T005 87 278 21 R04 R 04 Hot Air Nozzle Round, Ø 1,2 mm, for HAP 1 and HAP 200
T005 87 278 22 R06 R06 Round Nozzle for HAP 1 and HAP 200, Ø 3.0 mm
Accessories
Soldering Equipment 55
