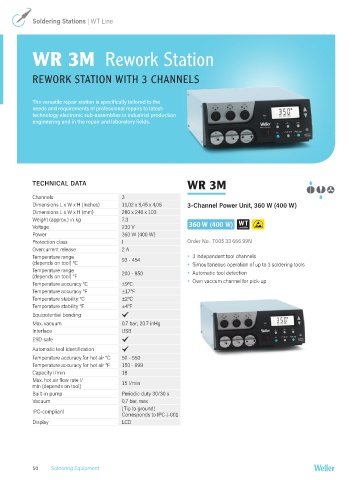

P. 50
Soldering Stations | WT Line
WR 3M Rework Station
REWORK STATION WITH 3 CHANNELS
The versatile repair station is specifically tailored to the
needs and requirements of professional repairs to latest-
technology electronic sub-assemblies in industrial production
engineering and in the repair and laboratory fields.
TECHNICAL DATA WR 3M
Channels 3
Dimensions L x W x H (Inches) 11,02 x 9,45 x 4,06 3-Channel Power Unit, 360 W (400 W)
Dimensions L x W x H (mm) 280 x 240 x 103
Weight (approx.) in kg 7.3
Voltage 230 V 360 W (400 W)
Power 360 W (400 W)
Protection class I Order No. T005 33 666 99N
Overcurrent release 2 A
Temperature range 93 - 454 3 independent tool channels
(depends on tool) °C Simoultaneous operation of up to 3 soldering tools
Temperature range 200 - 850 Automatic tool detection
(depends on tool) °F
Temperature accuracy °C ±9°C Own vaccum channel for pick-up
Temperature accuracy °F ±17°F
Temperature stability °C ±2°C
Temperature stability °F ±4°F
Equipotential bonding .
Max. vacuum 0.7 bar; 20.7 inHg
Interface USB
ESD-safe .
Automatic tool identification .
Temperature accuracy for hot air °C 50 - 550
Temperature accuracy for hot air °F 150 - 999
Capacity l/min 18
Max. hot air flow rate l/ 15 l/min
min (depends on tool)
Built-in pump Periodic duty 30/30 s
Vacuum 0,7 bar, max
(Tip to ground)
IPC-compliant
Corresponds to IPC-J-001
Display LCD
50 Soldering Equipment
