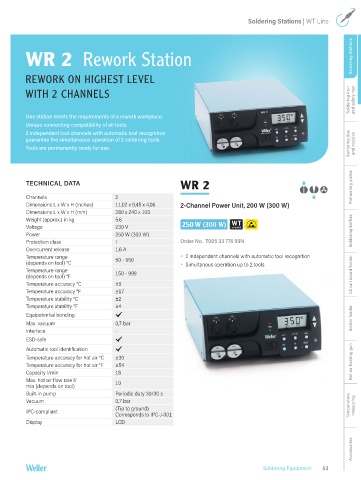

Page 53 - weller
P. 53
Soldering Stations | WT Line
WR 2 Rework Station Soldering Stations
REWORK ON HIGHEST LEVEL
Soldering iron and safety rest
WITH 2 CHANNELS
One station meets the requirements of a rework workplace.
Unique connecting compatibility of all tools.
2 independent tool channels with automatic tool recognition
guarantee the simultaneous operation of 2 soldering tools. Soldering tips
Tools are permanently ready for use. and nozzles
TECHNICAL DATA WR 2 Preheating plates
Channels 2
Dimensions L x W x H (Inches) 11,02 x 9,45 x 4,06 2-Channel Power Unit, 200 W (300 W)
Dimensions L x W x H (mm) 280 x 240 x 103
Weight (approx.) in kg 5.6
Voltage 230 V 250 W (300 W)
Power 250 W (300 W) Soldering bathes
Protection class I Order No. T005 33 776 99N
Overcurrent release 1,6 A
Temperature range 50 - 550 2 independent channels with automatic tool recognition
(depends on tool) °C Simultanous operation up to 2 tools
Temperature range 150 - 999
(depends on tool) °F Circuit board holder
Temperature accuracy °C ±9
Temperature accuracy °F ±17
Temperature stability °C ±2
Temperature stability °F ±4
Equipotential bonding . Solder feeder
Max. vacuum 0,7 bar
Interface -
ESD-safe .
Automatic tool identification .
Temperature accuracy for hot air °C ±30
Temperature accuracy for hot air °F ±54 Hot air heating gun
Capacity l/min 18
Max. hot air flow rate l/ 10
min (depends on tool)
Built-in pump Periodic duty 30/30 s
Vacuum 0,7 bar
(Tip to ground) Temperature measuring
IPC-compliant
Corresponds to IPC-J-001
Display LCD
Accessories
Soldering Equipment 53
