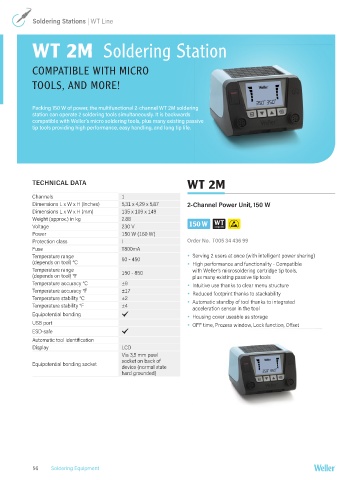

P. 56
Soldering Stations | WT Line
WT 2M Soldering Station
COMPATIBLE WITH MICRO
TOOLS, AND MORE!
Packing 150 W of power, the multifunctional 2-channel WT 2M soldering
station can operate 2 soldering tools simultaneously. It is backwards
compatible with Weller’s micro soldering tools, plus many existing passive
tip tools providing high performance, easy handling, and long tip life.
TECHNICAL DATA WT 2M
Channels 1
Dimensions L x W x H (Inches) 5,31 x 4,29 x 5,87 2-Channel Power Unit, 150 W
Dimensions L x W x H (mm) 135 x 109 x 149
Weight (approx.) in kg 2.88
Voltage 230 V 150 W
Power 150 W (160 W)
Protection class I Order No. T005 34 436 99
Fuse T800mA
Temperature range 50 - 450 Serving 2 users at once (with intelligent power sharing)
(depends on tool) °C High performance and functionality - Compatible
Temperature range 150 - 850 with Weller’s microsoldering cartridge tip tools,
(depends on tool) °F plus many existing passive tip tools
Temperature accuracy °C ±9 Intuitive use thanks to clear menu structure
Temperature accuracy °F ±17 Reduced footprint thanks to stackability
Temperature stability °C ±2 Automatic standby of tool thanks to integrated
Temperature stability °F ±4 acceleration sensor in the tool
Equipotential bonding . Housing cover useable as storage
USB port OFF time, Prozess window, Lock function, Offset
ESD-safe .
Automatic tool identification
Display LCD
Via 3,5 mm pawl
Equipotential bonding socket socket on back of
device (normal state
hard grounded)
56 Soldering Equipment
