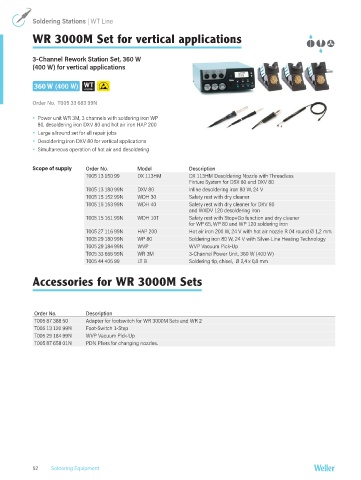

P. 52
Soldering Stations | WT Line
WR 3000M Set for vertical applications
3-Channel Rework Station Set, 360 W
(400 W) for vertical applications
360 W (400 W)
Order No. T005 33 683 99N
Power unit WR 3M, 3 channels with soldering iron WP
80, desoldering iron DXV 80 and hot air iron HAP 200
Large allround set for all repair jobs
Desoldering iron DXV 80 for vertical applications
Simultaneous operation of hot air and desoldering
Scope of supply Order No. Model Description
T005 13 150 99 DX 113HM DX 113HM Desoldering Nozzle with Threadless
Fixture System for DSX 80 and DXV 80
T005 13 180 99N DXV 80 Inline desoldering iron 80 W, 24 V
T005 15 152 99N WDH 30 Safety rest with dry cleaner
T005 15 153 99N WDH 40 Safety rest with dry cleaner for DXV 80
and WXDV 120 desoldering iron
T005 15 161 99N WDH 10T Safety rest with Stop+Go function and dry cleaner
for WP 65, WP 80 and WP 120 soldering iron
T005 27 116 99N HAP 200 Hot air iron 200 W, 24 V with hot air nozzle R 04 round Ø 1,2 mm
T005 29 180 99N WP 80 Soldering iron 80 W, 24 V with Silver-Line Heating Technology
T005 29 184 99N WVP WVP Vacuum Pick-Up
T005 33 666 99N WR 3M 3-Channel Power Unit, 360 W (400 W)
T005 44 405 99 LT B Soldering tip, chisel, Ø 2,4 x 0,8 mm
Accessories for WR 3000M Sets
Order No. Description
T005 87 388 50 Adapter for footswitch for WR 3000M Sets and WR 2
T005 13 120 99N Foot-Switch 1-Step
T005 29 184 99N WVP Vacuum Pick-Up
T005 87 658 01N PDN Pliers for changing nozzles.
52 Soldering Equipment
