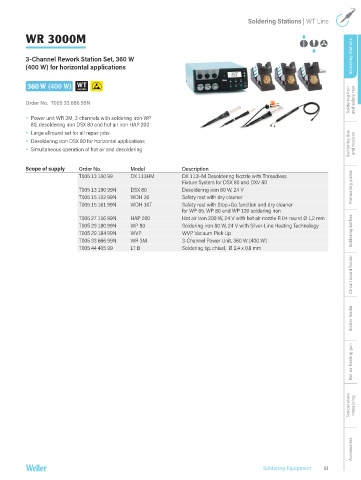

Page 51 - weller
P. 51
Soldering Stations | WT Line
WR 3000M
3-Channel Rework Station Set, 360 W Soldering Stations
(400 W) for horizontal applications
360 W (400 W)
Soldering iron
Order No. T005 33 686 99N and safety rest
Power unit WR 3M, 3 channels with soldering iron WP
80, desoldering iron DSX 80 and hot air iron HAP 200
Large allround set for all repair jobs
Desoldering iron DSX 80 for horizontal applications Soldering tips and nozzles
Simultaneous operation of hot air and desoldering
Scope of supply Order No. Model Description
T005 13 150 99 DX 113HM DX 113HM Desoldering Nozzle with Threadless
Fixture System for DSX 80 and DXV 80
T005 13 190 99N DSX 80 Desoldering iron 80 W, 24 V Preheating plates
T005 15 152 99N WDH 30 Safety rest with dry cleaner
T005 15 161 99N WDH 10T Safety rest with Stop+Go function and dry cleaner
for WP 65, WP 80 and WP 120 soldering iron
T005 27 116 99N HAP 200 Hot air iron 200 W, 24 V with hot air nozzle R 04 round Ø 1,2 mm
T005 29 180 99N WP 80 Soldering iron 80 W, 24 V with Silver-Line Heating Technology
T005 29 184 99N WVP WVP Vacuum Pick-Up Soldering bathes
T005 33 666 99N WR 3M 3-Channel Power Unit, 360 W (400 W)
T005 44 405 99 LT B Soldering tip, chisel, Ø 2,4 x 0,8 mm
Circuit board holder
Solder feeder
Hot air heating gun
Temperature measuring
Accessories
Soldering Equipment 51
