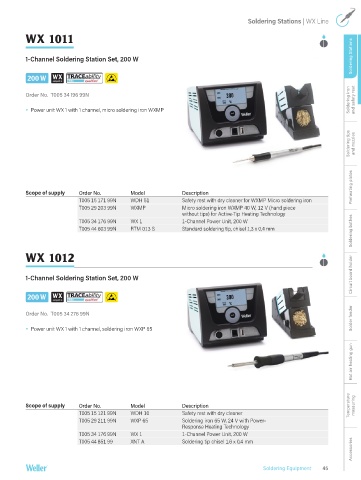

Page 45 - weller
P. 45
Soldering Stations | WX Line
WX 1011
Soldering Stations
1-Channel Soldering Station Set, 200 W
200 W
Soldering iron and safety rest
Order No. T005 34 196 99N
Power unit WX 1 with 1 channel, micro soldering iron WXMP
Soldering tips and nozzles
Preheating plates
Scope of supply Order No. Model Description
T005 15 171 99N WDH 51 Safety rest with dry cleaner for WXMP Micro soldering iron
T005 29 203 99N WXMP Micro soldering iron WXMP 40 W, 12 V (hand piece
without tips) for Active-Tip Heating Technology
Soldering bathes
T005 34 176 99N WX 1 1-Channel Power Unit, 200 W
T005 44 603 99N RTM 013 S Standard soldering tip, chisel 1,3 x 0,4 mm
WX 1012
Circuit board holder
1-Channel Soldering Station Set, 200 W
200 W
Solder feeder
Order No. T005 34 276 99N
Power unit WX 1 with 1 channel, soldering iron WXP 65
Hot air heating gun
Scope of supply Order No. Model Description Temperature measuring
T005 15 121 99N WDH 10 Safety rest with dry cleaner
T005 29 211 99N WXP 65 Soldering iron 65 W, 24 V with Power-
Response Heating Technology
T005 34 176 99N WX 1 1-Channel Power Unit, 200 W
Accessories
T005 44 851 99 XNT A Soldering tip chisel 1,6 x 0,4 mm
Soldering Equipment 45
