Soldering Stations | WX Line

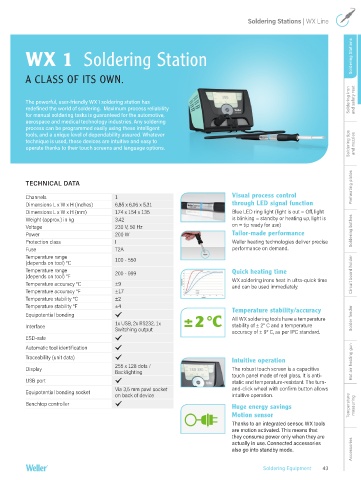

WX 1 Soldering Station Soldering Stations

A CLASS OF ITS OWN.

The powerful, user-friendly WX 1 soldering station has Soldering iron and safety rest
redefined the world of soldering. Maximum process reliability
for manual soldering tasks is guaranteed for the automotive,
aerospace and medical technology industries. Any soldering
process can be programmed easily using these intelligent
tools, and a unique level of dependability assured. Whatever
technique is used, these devices are intuitive and easy to Soldering tips and nozzles
operate thanks to their touch screens and language options.

TECHNICAL DATA Preheating plates

Channels 1 Visual process control
Dimensions L x W x H (Inches) 6,85 x 6,06 x 5,31 through LED signal function
Dimensions L x W x H (mm) 174 x 154 x 135 Blue LED ring light (light is out = Off, light
Weight (approx.) in kg 3.42 is blinking = standby or heating up, light is
Voltage 230 V, 50 Hz on = tip ready for use)
Power 200 W Tailor-made performance Soldering bathes
Protection class I Weller heating technologies deliver precise
Fuse T2A performance on demand.
Temperature range 100 - 550
(depends on tool) °C
Temperature range 200 - 999 Quick heating time
(depends on tool) °F Circuit board holder
Temperature accuracy °C ±9 WX soldering irons heat in ultra-quick time
and can be used immediately.
Temperature accuracy °F ±17
Temperature stability °C ±2
Temperature stability °F ±4 Temperature stability/accuracy
Equipotential bonding . All WX soldering tools have a temperature Solder feeder
1x USB, 2x RS232, 1x ± 2 °C
Interface stability of ± 2° C and a temperature
Switching output accuracy of ± 9° C, as per IPC standard.
ESD-safe .
Automatic tool identification .
Traceability (unit data) . Intuitive operation
255 x 128 dots / Hot air heating gun
Display The robust touch screen is a capacitive
Backlighting touch panel made of real glass. It is anti-
USB port . static and temperature-resistant. The turn-
Via 3,5 mm pawl socket and-click wheel with confirm button allows
Equipotential bonding socket
on back of device intuitive operation.
Benchtop controller . Temperature
Huge energy savings measuring
Motion sensor
Thanks to an integrated sensor, WX tools
are motion activated. This means that
they consume power only when they are
actually in use. Connected accessories
also go into standby mode. Accessories
