Soldering Stations | WX Line

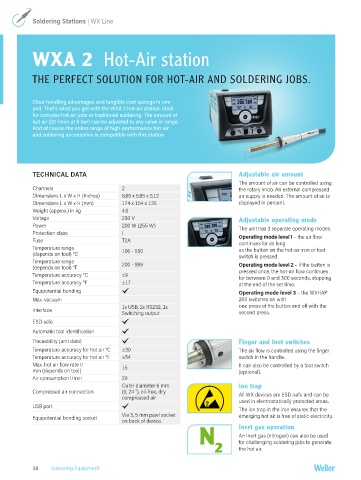

WXA 2 Hot-Air station

THE PERFECT SOLUTION FOR HOT-AIR AND SOLDERING JOBS.

Clear handling advantages and tangible cost savings in one
unit. That’s what you get with the WXA 2 hot-air station. Ideal
for complex hot-air jobs or traditional soldering. The amount of
hot air (20 l/min at 6 bar) can be adjusted to any value in range.
And of course the entire range of high-performance hot-air
and soldering accessories is compatible with this station.

TECHNICAL DATA Adjustable air amount
The amount of air can be controlled using
Channels 2 the rotary knob. An external compressed
Dimensions L x W x H (Inches) 6,69 x 5,95 x 5,12 air supply is needed. The amount of air is
Dimensions L x W x H (mm) 174 x 154 x 135 displayed in percent.
Weight (approx.) in kg 4.0
Voltage 230 V Adjustable operating mode
Power 200 W (255 W) The unit has 3 separate operating modes.
Protection class I Operating mode level 1 – the air flow
Fuse T2A continues for as long
Temperature range 100 - 550 as the button on the hot-air iron or foot
(depends on tool) °C switch is pressed.
Temperature range 200 - 999 Operating mode level 2 – if the button is
(depends on tool) °F pressed once, the hot-air flow continues
Temperature accuracy °C ±9 for between 0 and 300 seconds, stopping
Temperature accuracy °F ±17 at the end of the set time.
Equipotential bonding . Operating mode level 3 – the WXHAP
Max. vacuum 200 switches on with
1x USB, 2x RS232, 1x one press of the button and off with the
Interface
Switching output second press.
ESD-safe .
Automatic tool identification .
Traceability (unit data) . Finger and foot switches
Temperature accuracy for hot air °C ±30 The air flow is controlled using the finger
Temperature accuracy for hot air °F ±54 switch in the handle.
Max. hot air flow rate l/ 15 It can also be controlled by a foot switch
min (depends on tool) (optional).
Air consumption l/min 20
Outer diameter 6 mm Ion trap
Compressed air connection (0, 24 "), oil-free, dry All WX devices are ESD-safe and can be
compressed air used in electrostatically protected areas.
USB port . The ion trap in the iron ensures that the
Equipotential bonding socket Via 3, 5 mm pawl socket emerging hot air is free of static electricity.
on back of device.
N Inert gas operation
An inert gas (nitrogen) can also be used
2 for challenging soldering jobs to generate
the hot air.

38 Soldering Equipment
