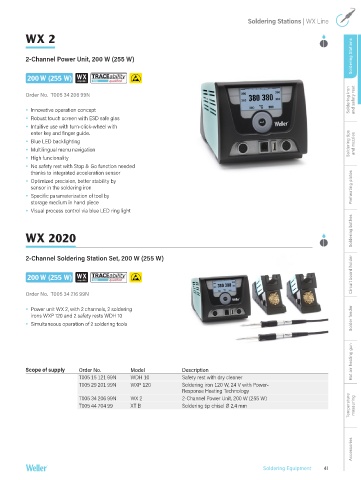

Page 41 - weller
P. 41
Soldering Stations | WX Line
WX 2
Soldering Stations
2-Channel Power Unit, 200 W (255 W)
200 W (255 W)
Soldering iron and safety rest
Order No. T005 34 206 99N
Innovative operation concept
Robust touch screen with ESD safe glas
Intuitive use with turn-click-wheel with
enter key and finger guide.
Blue LED backlighting Soldering tips and nozzles
Multilingual menu navigation
High funcionality
No safety rest with Stop & Go function needed
thanks to integrated acceleration sensor
Optimized precision, better stability by
sensor in the soldering iron Preheating plates
Specific parameterization of tool by
storage medium in hand piece
Visual process control via blue LED ring light
Soldering bathes
WX 2020
2-Channel Soldering Station Set, 200 W (255 W)
Circuit board holder
200 W (255 W)
Order No. T005 34 216 99N
Power unit WX 2, with 2 channels, 2 soldering
irons WXP 120 and 2 safety rests WDH 10 Solder feeder
Simultaneous operation of 2 soldering tools
Hot air heating gun
Scope of supply Order No. Model Description
T005 15 121 99N WDH 10 Safety rest with dry cleaner
T005 29 201 99N WXP 120 Soldering iron 120 W, 24 V with Power-
Response Heating Technology
T005 34 206 99N WX 2 2-Channel Power Unit, 200 W (255 W)
T005 44 704 99 XT B Soldering tip chisel Ø 2,4 mm Temperature measuring
Accessories
Soldering Equipment 41
