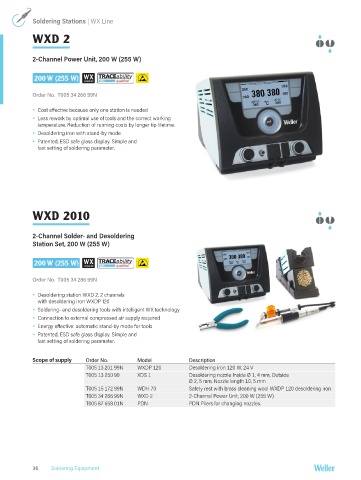

Page 36 - weller
P. 36

Soldering Stations | WX Line

            WXD 2



            2-Channel Power Unit, 200 W (255 W)


            200 W (255 W)


            Order No.  T005 34 266 99N

               Ÿ Cost effective because only one station is needed
               Ÿ Less rework by optimal use of tools and the correct working
             temperature. Reduction of running costs by longer tip lifetime.
               Ÿ Desoldering iron with stand-by mode
               Ÿ Patented, ESD safe glass display. Simple and
             fast setting of soldering parameter.











            WXD 2010



            2-Channel Solder- and Desoldering
            Station Set, 200 W (255 W)


            200 W (255 W)


            Order No.  T005 34 286 99N

               Ÿ Desoldering station WXD 2, 2 channels
             with desoldering iron WXDP 120
               Ÿ Soldering- and desoldering tools with intelligent WX technology
               Ÿ Connection to external compressed air supply required
               Ÿ Energy effective: automatic stand-by mode for tools
               Ÿ Patented, ESD safe glass display. Simple and
             fast setting of soldering parameter.

            Scope of supply  Order No.        Model            Description
                             T005 13 201 99N  WXDP 120         Desoldering iron 120 W, 24 V
                             T005 13 250 99   XDS 1            Desoldering nozzle Inside Ø 1, 4 mm, Outside
                                                               Ø 2, 5 mm, Nozzle length 10, 5 mm
                             T005 15 172 99N  WDH 70           Safety rest with brass cleaning wool WXDP 120 desoldering iron
                             T005 34 266 99N  WXD 2            2-Channel Power Unit, 200 W (255 W)
                             T005 87 658 01N  PDN              PDN Pliers for changing nozzles.












            36    Soldering Equipment
