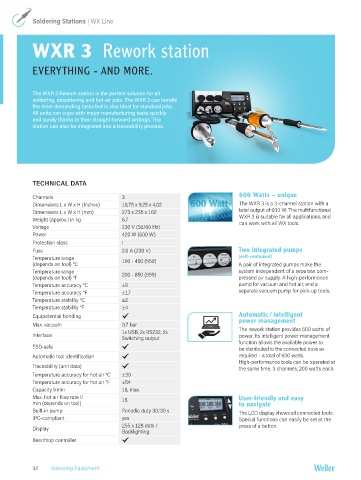

Soldering Stations | WX Line

WXR 3 Rework station

EVERYTHING - AND MORE.

The WXR 3 Rework station is the perfect solution for all
soldering, desoldering and hot-air jobs. The WXR 3 can handle
the most demanding tasks but is also ideal for standard jobs.
All units can cope with major manufacturing tasks quickly
and surely thanks to their straight-forward settings. The
station can also be integrated into a traceability process.

TECHNICAL DATA

Channels 3 600 Watts – unique
Dimensions L x W x H (Inches) 10,75 x 9,25 x 4,02 600 Watt The WXR 3 is a 3-channel station with a
Dimensions L x W x H (mm) 273 x 235 x 102 total output of 600 W. The multifunctional
Weight (approx.) in kg 6.7 WXR 3 is suitable for all applications, and
can work with all WX tools.
Voltage 230 V (50/60 Hz)
Power 420 W (600 W)
Protection class I
Fuse 2.0 A (230 V) Two integrated pumps
Temperature range 100 - 450 (550) (self-contained)
(depends on tool) °C A pair of integrated pumps make the
Temperature range 200 - 850 (999) system independent of a separate com-
(depends on tool) °F pressed air supply. A high-performance
Temperature accuracy °C ±9 pump for vacuum and hot air, and a
Temperature accuracy °F ±17 separate vacuum pump for pick-up tools.
Temperature stability °C ±2
Temperature stability °F ±4
Equipotential bonding . Automatic / intelligent
Max. vacuum 0,7 bar power management
1x USB, 2x RS232, 2x The rework station provides 600 watts of
Interface power. Its intelligent power management
Switching output
ESD-safe . function allows the available power to
be distributed to the connected tools as
Automatic tool identification . required – a total of 600 watts.
High-performance tools can be operated at
Traceability (unit data) . the same time. 3 channels, 200 watts each.
Temperature accuracy for hot air °C ±30
Temperature accuracy for hot air °F ±54
Capacity l/min 18, max.
Max. hot air flow rate l/ 15 User-friendly and easy
min (depends on tool) to navigate
Built-in pump Periodic duty 30/30 s The LCD display shows all connected tools.
IPC-compliant yes Special functions can easily be set at the
255 x 128 dots / press of a button.
Display
Backlighting
Benchtop controller .

32 Soldering Equipment
