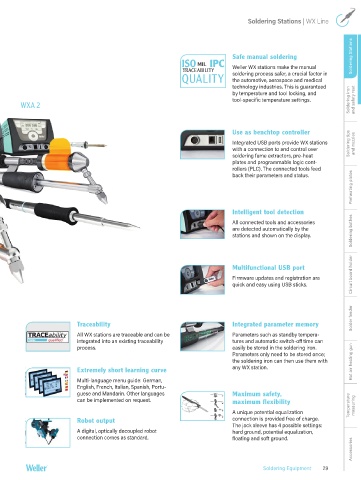

Page 29 - weller
P. 29
Soldering Stations | WX Line
Safe manual soldering Soldering Stations
ISO MIL IPC Weller WX stations make the manual
TRACEABILITY soldering process safer, a crucial factor in
QUALITY the automotive, aerospace and medical
technology industries. This is guaranteed
by temperature and tool locking, and
tool-specific temperature settings. Soldering iron and safety rest
WXA 2
Use as benchtop controller
Integrated USB ports provide WX stations Soldering tips and nozzles
with a connection to and control over
soldering fume extractors, pre-heat
plates and programmable logic cont-
rollers (PLC). The connected tools feed
Preheating plates
back their parameters and status.
Intelligent tool detection
All connected tools and accessories
are detected automatically by the Soldering bathes
stations and shown on the display.
Multifunctional USB port
Firmware updates and registration are Circuit board holder
quick and easy using USB sticks.
Solder feeder
Traceability Integrated parameter memory
All WX stations are traceable and can be Parameters such as standby tempera-
integrated into an existing traceability tures and automatic switch-off time can
process. easily be stored in the soldering iron.
Parameters only need to be stored once;
the soldering iron can then use them with Hot air heating gun
Extremely short learning curve any WX station.
Multi-language menu guide: German,
English, French, Italian, Spanish, Portu-
guese and Mandarin. Other languages Maximum safety,
can be implemented on request. maximum flexibility Temperature
A unique potential equalization measuring
Robot output connection is provided free of charge.
The jack sleeve has 4 possible settings:
A digital, optically decoupled robot hard ground, potential equalization,
connection comes as standard. floating and soft ground.
Accessories
