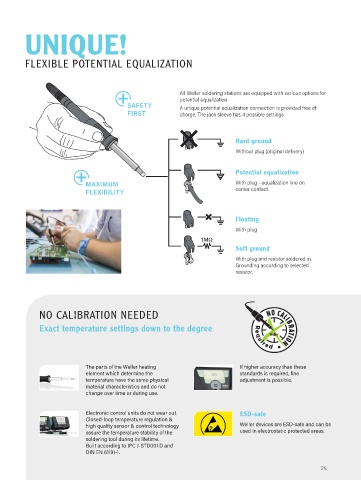

WE LINE UNIQUE!

ROBUST UNIT FOR CUSTOM APPLICATIONS FLEXIBLE POTENTIAL EQUALIZATION

All Weller soldering stations are equipped with various options for
potential equalization.
SAFETY A unique potential equalization connection is provided free of
FIRST charge. The jack sleeve has 4 possible settings

Hard ground
Without plug (original delivery)

Potential equalization
MAXIMUM With plug - equalization line on
FLEXIBILITY center contact.

Floating
With plug

Soft ground
With plug and resistor soldered in.
Grounding according to selected
resistor.

NO CALIBRATION NEEDED
Exact temperature settings down to the degree

The parts of the Weller heating If higher accuracy than these
element which determine the standards is required, fine
temperature have the same physical adjustment is possible.
material characteristics and do not
change over time or during use.

Electronic control units do not wear out. ESD-safe
Closed-loop temperature regulation &
high quality sensor & control technology Weller devices are ESD-safe and can be
assure the temperature stability of the used in electrostatic protected areas.
soldering tool during its lifetime.
Built according to IPC J-STD001 D and
DIN EN 61191-1.

25
