Soldering Stations | WX Line

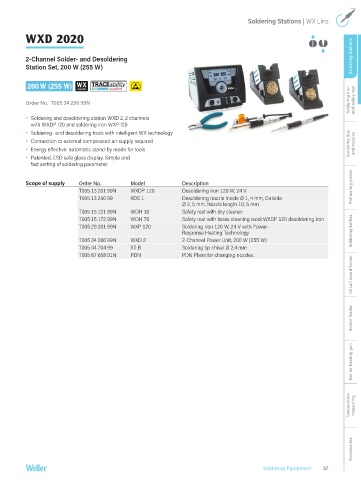

WXD 2020
2-Channel Solder- and Desoldering Soldering Stations
Station Set, 200 W (255 W)
200 W (255 W)
Soldering iron
Order No. T005 34 296 99N and safety rest
Soldering and desoldering station WXD 2, 2 channels
with WXDP 120 and soldering iron WXP 120
Soldering- and desoldering tools with intelligent WX technology
Connection to external compressed air supply required Soldering tips and nozzles
Energy effective: automatic stand-by mode for tools
Patented, ESD safe glass display. Simple and
fast setting of soldering parameter.
Scope of supply Order No. Model Description
T005 13 201 99N WXDP 120 Desoldering iron 120 W, 24 V Preheating plates
T005 13 250 99 XDS 1 Desoldering nozzle Inside Ø 1, 4 mm, Outside
Ø 2, 5 mm, Nozzle length 10, 5 mm
T005 15 121 99N WDH 10 Safety rest with dry cleaner
T005 15 172 99N WDH 70 Safety rest with brass cleaning wool WXDP 120 desoldering iron
T005 29 201 99N WXP 120 Soldering iron 120 W, 24 V with Power-
Response Heating Technology Soldering bathes
T005 34 266 99N WXD 2 2-Channel Power Unit, 200 W (255 W)
T005 44 704 99 XT B Soldering tip chisel Ø 2,4 mm
T005 87 658 01N PDN PDN Pliers for changing nozzles.
Circuit board holder
Solder feeder
Hot air heating gun
Temperature measuring
Accessories
Soldering Equipment 37
