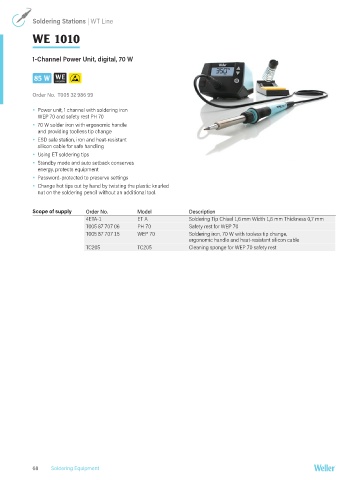

Page 68 - weller
P. 68
Soldering Stations | WT Line
WE 1010
1-Channel Power Unit, digital, 70 W
85 W
Order No. T005 32 986 99
Power unit, 1 channel with soldering iron
WEP 70 and safety rest PH 70
70 W solder iron with ergonomic handle
and providing toolless tip change
ESD safe station, iron and heat-resistant
silicon cable for safe handling
Using ET soldering tips
Standby mode and auto setback conserves
energy, protects equipment
Password-protected to preserve settings
Change hot tips out by hand by twisting the plastic knurled
nut on the soldering pencil without an additional tool.
Scope of supply Order No. Model Description
4ETA-1 ET A Soldering Tip Chisel 1,6 mm Width 1,6 mm Thickness 0,7 mm
T005 87 707 06 PH 70 Safety rest for WEP 70
T005 87 707 15 WEP 70 Soldering iron, 70 W with tooless tip change,
ergonomic handle and heat-resistant silicon cable
TC205 TC205 Cleaning sponge for WEP 70 safety rest
68 Soldering Equipment
