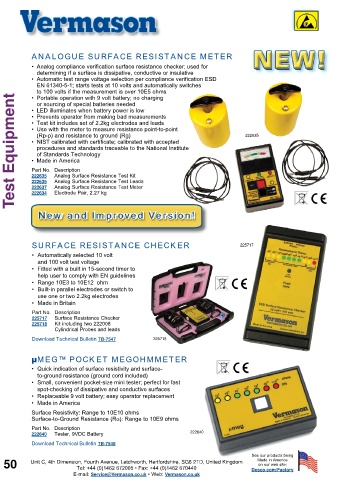

P. 50

ANALOGUE SURFACE RESISTANCE METER

            •  Analog compliance verification surface resistance checker; used for
              determining if a surface is dissipative, conductive or insulative
            •  Automatic test range voltage selection per compliance verification ESD
              EN 61340-5-1; starts tests at 10 volts and automatically switches
              to 100 volts if the measurement is over 10E5 ohms
      Test Equipment
            •  Portable operation with 9 volt battery; no charging
              or sourcing of special batteries needed
            •  LED illuminates when battery power is low
            •  Prevents operator from making bad measurements
            •  Test kit includes set of 2.2kg electrodes and leads
            •  Use with the meter to measure resistance point-to-point
              (Rp-p) and resistance to ground (Rg)                                     222635
            •  NIST calibrated with certificate; calibrated with accepted
              procedures and standards traceable to the National Institute
              of Standards Technology
            •  Made in America
            Part No.  Description
            222635   Analog Surface Resistance Test Kit
            222636   Analog Surface Resistance Test Leads
            222637   Analog Surface Resistance Test Meter
            222634   Electrode Pair, 2.27 kg


              New and Improved Version!




            SURFACE RESISTANCE CHECKER                                               225717

            •  Automatically selected 10 volt
              and 100 volt test voltage
            •  Fitted with a built in 15-second timer to
              help user to comply with EN guidelines
            •  Range 10E3 to 10E12  ohm
            •  Built-in parallel electrodes or switch to
              use one or two 2.2kg electrodes
            •  Made in Britain
            Part No.  Description
            225717   Surface Resistance Checker
            225718   Kit including two 222008
                    Cylindrical Probes and leads
            Download Technical Bulletin TB-7547        225718


            μMEG™ POCKET MEGOHMMETER
            •  Quick indication of surface resistivity and surface-
              to-ground resistance (ground cord included)
            •  Small, convenient pocket-size mini tester; perfect for fast
              spot-checking of dissipative and conductive surfaces
            •  Replaceable 9 volt battery; easy operator replacement
            •  Made in America
            Surface Resistivity: Range to 10E10 ohms
            Surface-to-Ground Resistance (RG): Range to 10E9 ohms
            Part No.  Description
            222640    Tester, 9VDC Battery                          222640

            Download Technical Bulletin TB-7548
