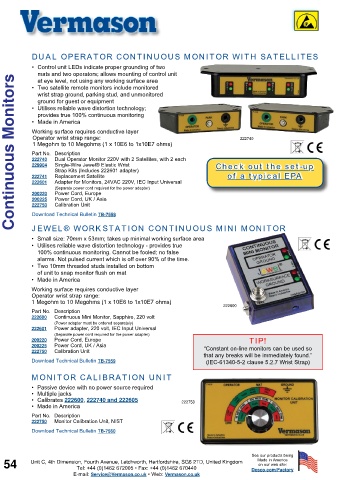

Page 54 - VERMASON ESD katalógus
P. 54

DUAL OPERATOR CONTINUOUS MONITOR WITH SATELLITES

            •  Control unit LEDs indicate proper grounding of two
              mats and two operators; allows mounting of control unit
      Continuous Monitors
              at eye level, not using any working surface area
            •  Two satellite remote monitors include monitored
              wrist strap ground, parking stud, and unmonitored
              ground for guest or equipment
            •  Utilises reliable wave distortion technology;
              provides true 100% continuous monitoring
            •  Made in America
            Working surface requires conductive layer
            Operator wrist strap range:                                              222740
            1 Megohm to 10 Megohms (1 x 10E6 to 1x10E7 ohms)
            Part No.  Description
            222740   Dual Operator Monitor 220V with 2 Satellites, with 2 each
            229904   Single-Wire Jewel® Elastic Wrist                        Check out the set-up
                    Strap Kits (Includes 222601 adapter)
            222741   Replacement Satellite                                       of a typical EPA
            222601   Adapter for Monitors, 24VAC 220V, IEC Input Universal
                    (Separate power cord required for the power adapter)
            200220   Power Cord, Europe
            200225   Power Cord, UK / Asia
            222750   Calibration Unit
            Download Technical Bulletin TB-7558

            JEWEL® WORKSTATION CONTINUOUS MINI MONITOR

            •  Small size: 70mm x 53mm; takes up minimal working surface area
            •  Utilises reliable wave distortion technology - provides true
              100% continuous monitoring. Cannot be fooled; no false
              alarms. Not pulsed current which is off over 90% of the time.
            •  Two 10mm threaded studs installed on bottom
              of unit to snap monitor flush on mat
            •  Made in America

            Working surface requires conductive layer
            Operator wrist strap range:
            1 Megohm to 10 Megohms (1 x 10E6 to 1x10E7 ohms)
                                                                               222600
            Part No.  Description
            222600   Continuous Mini Monitor, Sapphire, 220 volt
                    (Power adapter must be ordered separately)
            222601   Power adapter, 220 volt, IEC Input Universal
                    (Separate power cord required for the power adapter)
            200220   Power Cord, Europe                                                  TIP!
            200225   Power Cord, UK / Asia                               “Constant on-line monitors can be used so
            222750   Calibration Unit
                                                                         that any breaks will be immediately found.”
            Download Technical Bulletin TB-7559                          (IEC-61340-5-2 clause 5.2.7 Wrist Strap)
            MONITOR CALIBRATION UNIT

            •  Passive device with no power source required
            •  Multiple jacks
            •  Calibrates 222600, 222740 and 222605              222750
            •  Made in America
            Part No.  Description
            222750   Monitor Calibration Unit, NIST

            Download Technical Bulletin TB-7560



                                                                                         See our products being
  54        Unit C, 4th Dimension, Fourth Avenue, Letchworth, Hertfordshire, SG6 2TD, United Kingdom  Made in America
                                                                                            on our web site:
                            Tel: +44 (0)1462 672005 • Fax: +44 (0)1462 670440
                           E-mail: Service@Vermason.co.uk • Web: Vermason.co.uk          Desco.com/Factory
