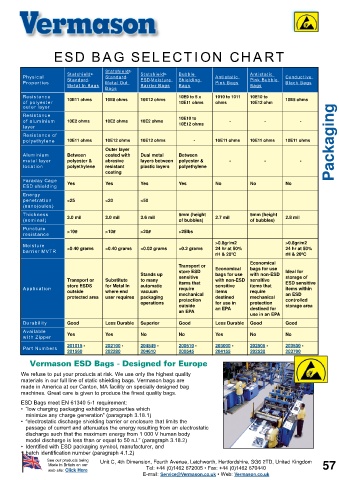

ESD BAG SELECTION CHART
Statshield ®
Physical Statshield ® Standard Statshield ® Bubble Antistatic Antistatic Conductive
Properties Standard Metal Out ESD Moisture Shielding Pink Bags Pink Bubble Black Bags
Metal In Bags Barrier Bags Bags Bags
Bags
Resistance 10E9 to 5 x 1010 to 1011 10E10 to
of polyester 10E11 ohms 10E8 ohms 10E12 ohms 10E11 ohms ohms 10E12 ohm 10E5 ohms
outer layer
Resistance
of aluminium 10E2 ohms 10E2 ohms 10E2 ohms 10E10 to - - -
layer 10E12 ohms
Resistance of
polyethylene 10E11 ohms 10E12 ohms 10E12 ohms - 10E11 ohms 10E11 ohms 10E11 ohms Packaging
Outer layer
Aluminium Between coated with Dual metal Between
metal layer polyester & abrasive layers between polyester & - - -
location polyethylene resistant plastic layers polyethylene
coating
Faraday Cage Yes Yes Yes Yes No No No
ESD shielding
Energy
penetration <25 <20 <50
(nanojoules)
Thickness 5mm (height 5mm (height
(nominal) 3.0 mil 3.0 mil 3.6 mil of bubbles) 2.7 mil of bubbles) 2.8 mil
Puncture
resistance >10# >10# >20# >25lbs
>0.8gr/m2 >0.8gr/m2
Moisture <0.40 grams <0.40 grams <0.02 grams <0.2 grams 24 hr at 50% 24 hr at 50%
barrier MVTR
rH & 20ºC rH & 20ºC
Economical
Transport or Economical bags for use
store ESD Ideal for
Stands up bags for use with non-ESD
Transport or Substitute to many sensitive with non-ESD sensitive storage of
ESD sensitive
items that
Application store ESDS for Metal In automatic require sensitive items that items within
outside where end vacuum mechanical items require an ESD
protected area user requires packaging protection destined mechanical controlled
operations for use in protection
outside an EPA destined for storage area
an EPA
use in an EPA
Durability Good Less Durable Superior Good Less Durable Good Good
Available
with Zipper Yes Yes No No Yes No No
Part Numbers 201015 - 202100 - 204549 - 200510 - 203000 - 202505 - 203530 -
201560 202280 204610 200545 204155 202530 203700
Vermason ESD Bags - Designed for Europe
We refuse to put your products at risk. We use only the highest quality
materials in our full line of static shielding bags. Vermason bags are
made in America at our Canton, MA facility on specially designed bag
machines. Great care is given to produce the finest quality bags.
ESD Bags meet EN 61340 5-1 requirement:
• “low charging packaging exhibiting properties which
minimize any charge generation” (paragraph 3.18.1)
• “electrostatic discharge shielding barrier or enclosure that limits the
passage of current and attenuates the energy resulting from an electrostatic
discharge such that the maximum energy from 1 000 V human body
model discharge is less than or equal to 50 nJ.” (paragraph 3.18.2)
• Identified with ESD packaging symbol, manufacturer, and
batch identification number (paragraph 4.1.2)
