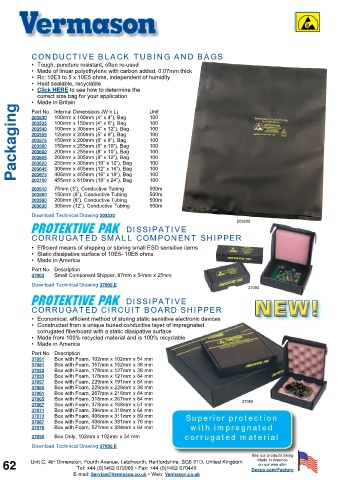

Page 62 - VERMASON ESD katalógus

CONDUCTIVE BLACK TUBING AND BAGS
• Tough, puncture resistant, often re-used
• Made of linear polyethylene with carbon added, 0.07mm thick
• RS: 10E3 to 5 x 10E5 ohms, independent of humidity
• Heat sealable, recyclable
• Click HERE to see how to determine the
correct size bag for your application
• Made in Britain Unit
Packaging 203535 100mm x 150mm (4” x 6”), Bag 100
Part No. Internal Dimensions (W x L)
100
100mm x 100mm (4” x 4”), Bag
203530
100
100mm x 305mm (4” x 12”), Bag
203540
125mm x 200mm (5” x 8”), Bag
100
203555
100
203575
150mm x 200mm (6” x 8”), Bag
100
203580
150mm x 255mm (6” x 10”), Bag
200mm x 255mm (8” x 10”), Bag
203600
100
200mm x 305mm (8” x 12”), Bag
203605
100
255mm x 305mm (10” x 12”), Bag
100
203620
203645
405mm x 455mm (16” x 18”), Bag
100
203675
203700
100
455mm x 610mm (18” x 24”), Bag
500m
203510 305mm x 405mm (12” x 16”), Bag 100
75mm (3”), Conductive Tubing
203560 150mm (6”), Conductive Tubing 500m
203590 200mm (8”), Conductive Tubing 500m
203630 305mm (12”), Conductive Tubing 500m
Download Technical Drawing 203530
203600
DISSIPATIVE
CORRUGATED SMALL COMPONENT SHIPPER
• Efficient means of shipping or storing small ESD sensitive items
• Static dissipative surface of 10E6- 10E8 ohms
• Made in America
Part No. Description
37003 Small Component Shipper, 87mm x 54mm x 25mm
Download Technical Drawing 37000.E
37003
DISSIPATIVE
CORRUGATED CIRCUIT BOARD SHIPPER
• Economical, efficient method of storing static sensitive electronic devices
• Constructed from a unique buried conductive layer of impregnated
corrugated fiberboard with a static dissipative surface
• Made from 100% recycled material and is 100% recyclable
• Made in America
Part No. Description
37051 Box with Foam, 102mm x 102mm x 54 mm
37081 Box with Foam, 157mm x 152mm x 38 mm
37053 Box with Foam, 178mm x 127mm x 38 mm
37055 Box with Foam, 178mm x 127mm x 64 mm
37057 Box with Foam, 229mm x 191mm x 64 mm
37085 Box with Foam, 229mm x 229mm x 38 mm
37061 Box with Foam, 267mm x 216mm x 64 mm
37065 Box with Foam, 318mm x 267mm x 64 mm
37067 Box with Foam, 378mm x 168mm x 51 mm 37050
37071 Box with Foam, 394mm x 318mm x 64 mm
37073 Box with Foam, 406mm x 311mm x 89 mm Superior protection
37087 Box with Foam, 406mm x 381mm x 76 mm
37079 Box with Foam, 521mm x 394mm x 64 mm with impregnated
37050 Box Only, 102mm x 102mm x 54 mm corrugated material
Download Technical Drawing 37050.E
See our products being
62 Unit C, 4th Dimension, Fourth Avenue, Letchworth, Hertfordshire, SG6 2TD, United Kingdom Made in America
on our web site:
Tel: +44 (0)1462 672005 • Fax: +44 (0)1462 670440
E-mail: Service@Vermason.co.uk • Web: Vermason.co.uk Desco.com/Factory
