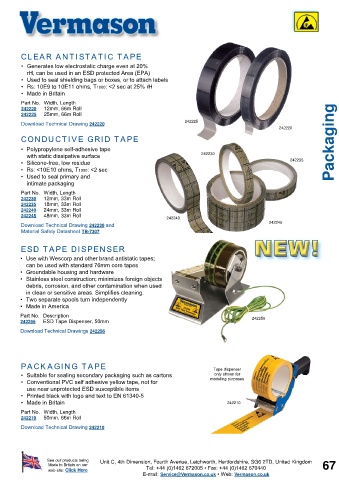

Page 67 - VERMASON ESD katalógus

CLEAR ANTISTATIC TAPE

• Generates low electrostatic charge even at 20%
rH, can be used in an ESD protected Area (EPA)
• Used to seal shielding bags or boxes, or to attach labels
• RS: 10E9 to 10E11 ohms, T1000: <2 sec at 25% rH
• Made in Britain
Part No. Width, Length
242220 12mm, 66m Roll
242225 25mm, 66m Roll
242225
Download Technical Drawing 242220
242220
CONDUCTIVE GRID TAPE Packaging

• Polypropylene self-adhesive tape
with static dissipative surface 242230
• Silicone-free, low residue 242235
• RS: <10E10 ohms, T1000: <2 sec
• Used to seal primary and
intimate packaging

Part No. Width, Length
242230 12mm, 33m Roll
242235 18mm, 33m Roll
242240 24mm, 33m Roll
242245 48mm, 33m Roll
242240
Download Technical Drawing 242230 and 242245
Material Safety Datasheet TB-7307

ESD TAPE DISPENSER

• Use with Wescorp and other brand antistatic tapes;
can be used with standard 76mm core tapes
• Groundable housing and hardware
• Stainless steel construction; minimizes foreign objects
debris, corrosion, and other contamination when used
in clean or sensitive areas. Simplifies cleaning.
• Two separate spools turn independently
• Made in America
Part No. Description
242256 ESD Tape Dispenser, 50mm 242256
Download Technical Drawings 242256

PACKAGING TAPE Tape dispenser
• Suitable for sealing secondary packaging such as cartons only shown for
• Conventional PVC self adhesive yellow tape, not for modeling purposes
use near unprotected ESD susceptible items
• Printed black with logo and text to EN 61340-5
• Made in Britain 242210

Part No. Width, Length
242210 50mm, 66m Roll
Download Technical Drawing 242210

See our products being Unit C, 4th Dimension, Fourth Avenue, Letchworth, Hertfordshire, SG6 2TD, United Kingdom
Made in Britain on our 67
web site: Click Here Tel: +44 (0)1462 672005 • Fax: +44 (0)1462 670440
E-mail: Service@Vermason.co.uk • Web: Vermason.co.uk
