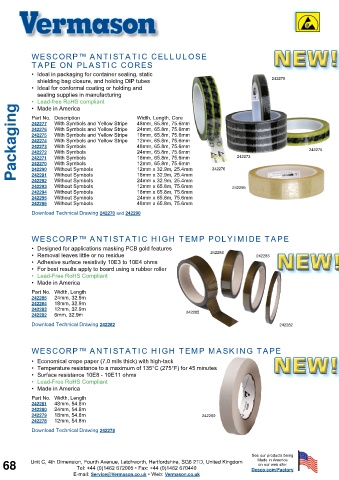

Page 68 - VERMASON ESD katalógus

WESCORP™ ANTISTATIC CELLULOSE
TAPE ON PLASTIC CORES

• Ideal in packaging for container sealing, static
shielding bag closure, and holding DIP tubes 242270
• Ideal for conformal coating or holding and
sealing supplies in manufacturing
• Lead-free RoHS compliant Width, Length, Core
Packaging 242277 With Symbols and Yellow Stripe 48mm, 65.8m, 75.6mm 242273 242275
• Made in America
Part No. Description

24mm, 65.8m, 75.6mm
With Symbols and Yellow Stripe
242276
With Symbols and Yellow Stripe
18mm, 65.8m, 75.6mm
242275
12mm, 65.8m, 75.6mm
With Symbols and Yellow Stripe
242274
48mm, 65.8m, 75.6mm
With Symbols
242273
With Symbols
242272
24mm, 65.8m, 75.6mm
With Symbols
242271
18mm, 65.8m, 75.6mm
242270
12mm, 65.8m, 75.6mm
With Symbols
242290
18mm x 32.9m, 25.4mm
Without Symbols
242291
24mm x 32.9m, 25.4mm
Without Symbols
242292
Without Symbols
242293 Without Symbols 12mm x 32.9m, 25.4mm 242276 242295
12mm x 65.8m, 75.6mm
242294 Without Symbols 18mm x 65.8m, 75.6mm
242295 Without Symbols 24mm x 65.8m, 75.6mm
242296 Without Symbols 48mm x 65.8m, 75.6mm
Download Technical Drawing 242270 and 242290
WESCORP™ ANTISTATIC HIGH TEMP POLYIMIDE TAPE
• Designed for applications masking PCB gold features
• Removal leaves little or no residue 242284 242283
• Adhesive surface resistivity 10E3 to 10E4 ohms
• For best results apply to board using a rubber roller
• Lead-Free RoHS Compliant
• Made in America
Part No. Width, Length
242285 24mm, 32.9m
242284 18mm, 32.9m
242283 12mm, 32.9m
242282 6mm, 32.9m 242285
Download Technical Drawing 242282 242282
WESCORP™ ANTISTATIC HIGH TEMP MASKING TAPE
• Economical crepe paper (7.0 mils thick) with high-tack
• Temperature resistance to a maximum of 135°C (275°F) for 45 minutes
• Surface resistance 10E8 - 10E11 ohms
• Lead-Free RoHS Compliant
• Made in America
Part No. Width, Length
242281 48mm, 54.8m
242280 24mm, 54.8m
242279 18mm, 54.8m 242280
242278 12mm, 54.8m
Download Technical Drawing 242278
