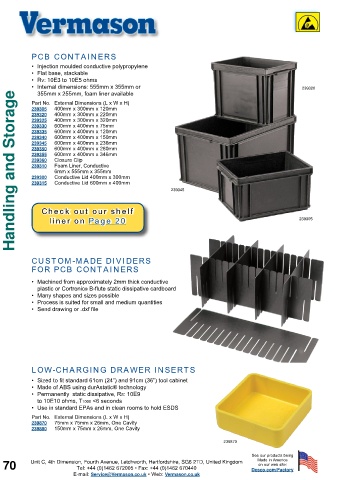

Page 70 - VERMASON ESD katalógus

PCB CONTAINERS

• Injection moulded conductive polypropylene
• Flat base, stackable
• RV: 10E3 to 10E5 ohms
• Internal dimensions: 555mm x 355mm or 239320
355mm x 255mm, foam liner available
Handling and Storage
Part No. External Dimensions (L x W x H)
239305 400mm x 300mm x 120mm
239320 400mm x 300mm x 220mm
239325 400mm x 300mm x 320mm
239330 600mm x 400mm x 75mm
239335 600mm x 400mm x 120mm
239340 600mm x 400mm x 150mm
239345 600mm x 400mm x 236mm
239350 600mm x 400mm x 280mm
239355 600mm x 400mm x 346mm
239360 Closure Clip
239310 Foam Liner, Conductive
6mm x 555mm x 355mm
239300 Conductive Lid 400mm x 300mm
239315 Conductive Lid 600mm x 400mm
239345

Check out our shelf
liner on Page 20 239305

CUSTOM-MADE DIVIDERS
FOR PCB CONTAINERS

• Machined from approximately 2mm thick conductive
plastic or Cortronic® B-flute static dissipative cardboard
• Many shapes and sizes possible
• Process is suited for small and medium quantities
• Send drawing or .dxf file

LOW-CHARGING DRAWER INSERTS
• Sized to fit standard 61cm (24”) and 91cm (36”) tool cabinet
• Made of ABS using durAstatic® technology
• Permanently static dissipative, RS: 10E9
to 10E10 ohms, T1000 <6 seconds
• Use in standard EPAs and in clean rooms to hold ESDS

Part No. External Dimensions (L x W x H)
239870 75mm x 75mm x 26mm, One Cavity
239880 150mm x 75mm x 26mm, One Cavity

239870

See our products being
70 Unit C, 4th Dimension, Fourth Avenue, Letchworth, Hertfordshire, SG6 2TD, United Kingdom Made in America
on our web site:
Tel: +44 (0)1462 672005 • Fax: +44 (0)1462 670440
E-mail: Service@Vermason.co.uk • Web: Vermason.co.uk Desco.com/Factory
