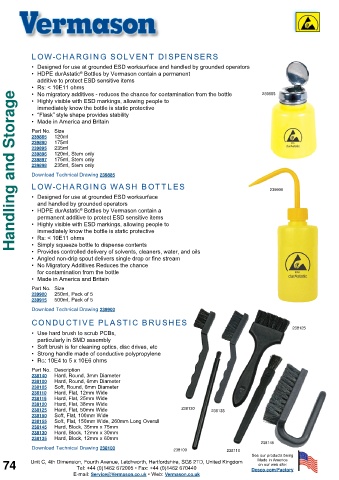

Page 74 - VERMASON ESD katalógus

LOW-CHARGING SOLVENT DISPENSERS

• Designed for use at grounded ESD worksurface and handled by grounded operators
• HDPE durAstatic Bottles by Vermason contain a permanent
®
additive to protect ESD sensitive items
• Rs: < 10E11 ohms
Handling and Storage
• No migratory additives - reduces the chance for contamination from the bottle 239885
• Highly visible with ESD markings, allowing people to
immediately know the bottle is static protective
• “Flask” style shape provides stability
• Made in America and Britain
Part No. Size
239885 120ml
239890 175ml
239895 235ml
239896 120ml, Stem only
239897 175ml, Stem only
239898 235ml, Stem only
Download Technical Drawing 239885
LOW-CHARGING WASH BOTTLES 239900
• Designed for use at grounded ESD worksurface
and handled by grounded operators
• HDPE durAstatic Bottles by Vermason contain a
®
permanent additive to protect ESD sensitive items
• Highly visible with ESD markings, allowing people to
immediately know the bottle is static protective
• Rs: < 10E11 ohms
• Simply squeeze bottle to dispense contents
• Provides controlled delivery of solvents, cleaners, water, and oils
• Angled non-drip spout delivers single drop or fine stream
• No Migratory Additives Reduces the chance
for contamination from the bottle
• Made in America and Britain
Part No. Size
239900 250ml, Pack of 5
239915 500ml, Pack of 5
Download Technical Drawing 239900
CONDUCTIVE PLASTIC BRUSHES
238125
• Use hard brush to scrub PCBs,
particularly in SMD assembly
• Soft brush is for cleaning optics, disc drives, etc
• Strong handle made of conductive polypropylene
• RG: 10E4 to 5 x 10E6 ohms
Part No. Description
238140 Hard, Round, 3mm Diameter
238100 Hard, Round, 6mm Diameter
238105 Soft, Round, 6mm Diameter
238110 Hard, Flat, 12mm Wide
238115 Hard, Flat, 25mm Wide
238120 Hard, Flat, 38mm Wide
238125 Hard, Flat, 50mm Wide 238130 238135
238150 Soft, Flat, 100mm Wide
238155 Soft, Flat, 150mm Wide, 260mm Long Overall
238145 Hard, Block, 35mm x 75mm
238130 Hard, Block, 12mm x 30mm
238135 Hard, Block, 12mm x 60mm
238145
Download Technical Drawing 238100 238100 238110
