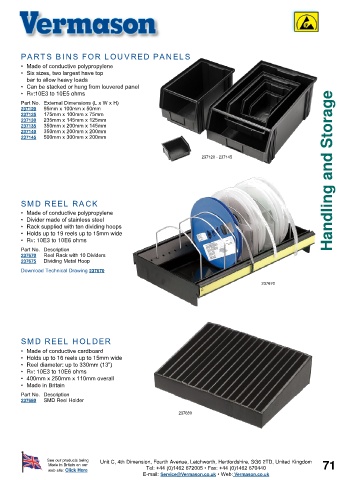

P. 71
PARTS BINS FOR LOUVRED PANELS
• Made of conductive polypropylene
• Six sizes, two largest have top
bar to allow heavy loads
• Can be stacked or hung from louvered panel
• RV:10E3 to 10E5 ohms
Part No. External Dimensions (L x W x H)
237120 95mm x 100mm x 50mm
237125 175mm x 100mm x 75mm
237130 235mm x 145mm x 125mm
237135 350mm x 200mm x 145mm
237140 350mm x 200mm x 200mm
237145 500mm x 300mm x 200mm
237120 - 237145 Handling and Storage
SMD REEL RACK
• Made of conductive polypropylene
• Divider made of stainless steel
• Rack supplied with ten dividing hoops
• Holds up to 19 reels up to 15mm wide
• RV: 10E3 to 10E6 ohms
Part No. Description
237670 Reel Rack with 10 Dividers
237675 Dividing Metal Hoop
Download Technical Drawing 237670
237670
SMD REEL HOLDER
• Made of conductive cardboard
• Holds up to 16 reels up to 15mm wide
• Reel diameter: up to 330mm (13”)
• RV: 10E3 to 10E6 ohms
• 400mm x 250mm x 110mm overall
• Made in Britain
Part No. Description
237680 SMD Reel Holder
237680
