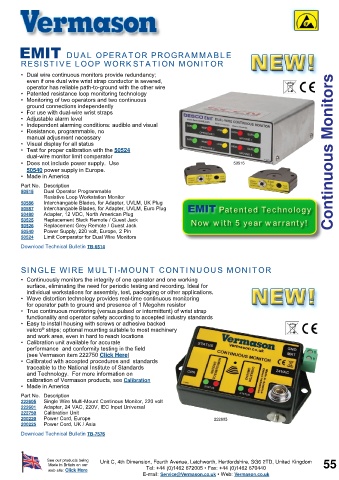

Page 55 - VERMASON ESD katalógus

DUAL OPERATOR PROGRAMMABLE
RESISTIVE LOOP WORKSTATION MONITOR

• Dual wire continuous monitors provide redundancy;
even if one dual wire wrist strap conductor is severed,
operator has reliable path-to-ground with the other wire
• Patented resistance loop monitoring technology
• Monitoring of two operators and two continuous
ground connections independently
• For use with dual-wire wrist straps
• Adjustable alarm level
• Independent alarming conditions: audible and visual
• Resistance, programmable, no
manual adjusment necessary
• Visual display for all status
• Test for proper calibration with the 50524 Continuous Monitors
dual-wire monitor limit comparator
• Does not include power supply. Use 50515
50540 power supply in Europe.
• Made in America
Part No. Description
50515 Dual Operator Programmable
Resistive Loop Workstation Monitor
50586 Interchangable Blades, for Adapter, UVLM, UK Plug
50587 Interchangable Blades, for Adapter, UVLM, Euro Plug Patented Technology
50480 Adapter, 12 VDC, North American Plug
50525 Replacement Black Remote / Guest Jack Now with 5 year warranty!
50526 Replacement Grey Remote / Guest Jack
50540 Power Supply, 220 volt, Europe, 2 Pin
50524 Limit Comparator for Dual Wire Monitors
Download Technical Bulletin TB-6514

SINGLE WIRE MULTI-MOUNT CONTINUOUS MONITOR
• Continuously monitors the integrity of one operator and one working
surface, eliminating the need for periodic testing and recording. Ideal for
individual workstations for assembly, test, packaging or other applications.
• Wave distortion technology provides real-time continuous monitoring
for operator path to ground and presence of 1 Megohm resistor
• True continuous monitoring (versus pulsed or intermittent) of wrist strap
functionality and operator safety according to accepted industry standards
• Easy to install housing with screws or adhesive backed
velcro strips; optional mounting suitable to most machinery
®
and work area, even in hard to reach locations
• Calibration unit available for accurate
performance and conformity testing in the field
(see Vermason item 222750 Click Here)
• Calibrated with accepted procedures and standards
traceable to the National Institute of Standards
and Technology. For more information on
calibration of Vermason products, see Calibration
• Made in America
Part No. Description
222605 Single Wire Multi-Mount Continous Monitor, 220 volt
222601 Adapter, 24 VAC, 220V, IEC Input Universal
222750 Calibration Unit
200220 Power Cord, Europe 222605
200225 Power Cord, UK / Asia
Download Technical Bulletin TB-7576
