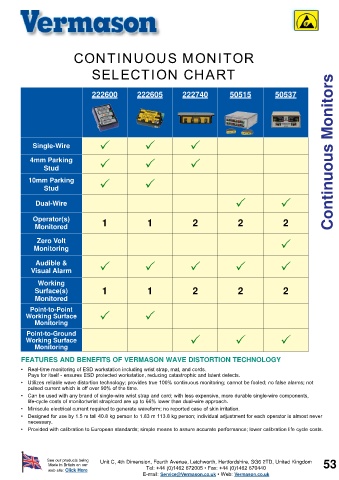

Page 53 - VERMASON ESD katalógus

CONTINUOUS MONITOR

SELECTION CHART

222600 222605 222740 50515 50537

Single-Wire P P P

4mm Parking P P P Continuous Monitors
Stud
10mm Parking
Stud P P

Dual-Wire P P

Operator(s) 1 1 2 2 2
Monitored

Zero Volt
Monitoring P

Audible &
Visual Alarm P P P P P

Working
Surface(s) 1 1 2 2 2
Monitored

Point-to-Point
Working Surface P P
Monitoring
Point-to-Ground
Working Surface P P P
Monitoring

FEATURES AND BENEFITS OF VERMASON WAVE DISTORTION TECHNOLOGY
• Real-time monitoring of ESD workstation including wrist strap, mat, and cords.
Pays for itself - ensures ESD protected workstation, reducing catastrophic and latent defects.
• Utilizes reliable wave distortion technology; provides true 100% continuous monitoring; cannot be fooled; no false alarms; not
pulsed current which is off over 90% of the time.
• Can be used with any brand of single-wire wrist strap and cord; with less expensive, more durable single-wire components,
life-cycle costs of monitor/wrist strap/cord are up to 66% lower than dual-wire approach.
• Miniscule electrical current required to generate waveform; no reported case of skin irritation.
• Designed for use by 1.5 m tall 40.8 kg person to 1.83 m 113.8 kg person; individual adjustment for each operator is almost never
necessary.
• Provided with calibration to European standards; simple means to assure accurate performance; lower calibration life cycle costs.
