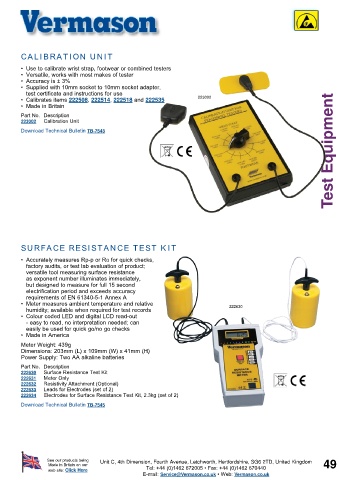

Page 49 - VERMASON ESD katalógus

CALIBRATION UNIT

• Use to calibrate wrist strap, footwear or combined testers
• Versatile, works with most makes of tester
• Accuracy is ± 3%
• Supplied with 10mm socket to 10mm socket adapter,
test certificate and instructions for use
• Calibrates items 222508, 222514, 222518 and 222535 223002
• Made in Britain
Part No. Description
223002 Calibration Unit
Download Technical Bulletin TB-7543 Test Equipment

SURFACE RESISTANCE TEST KIT

• Accurately measures Rp-p or RG for quick checks,
factory audits, or test lab evaluation of product;
versatile tool measuring surface resistance
as exponent number illuminates immediately,
but designed to measure for full 15 second
electrification period and exceeds accuracy
requirements of EN 61340-5-1 Annex A
• Meter measures ambient temperature and relative
humidity; available when required for test records 222630
• Colour coded LED and digital LCD read-out
- easy to read, no interpretation needed; can
easily be used for quick go/no go checks
• Made in America
Meter Weight: 439g
Dimensions: 203mm (L) x 109mm (W) x 41mm (H)
Power Supply: Two AA alkaline batteries
Part No. Description
222630 Surface Resistance Test Kit
222631 Meter Only
222632 Resistivity Attachment (Optional)
222633 Leads for Electrodes (set of 2)
222634 Electrodes for Surface Resistance Test Kit, 2.3kg (set of 2)
Download Technical Bulletin TB-7545
