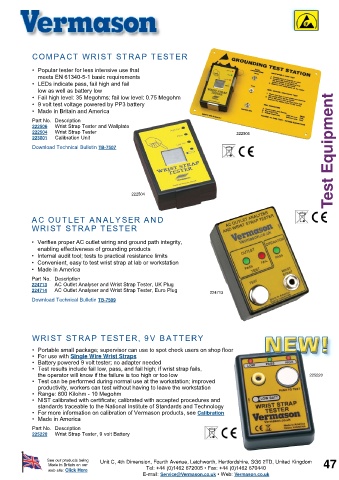

Page 47 - VERMASON ESD katalógus
P. 47

COMPACT WRIST STRAP TESTER

            •  Popular tester for less intensive use that
              meets EN 61340-5-1 basic requirements
            •  LEDs indicate pass, fail high and fail
              low as well as battery low
            •  Fail high level: 35 Megohms; fail low level: 0.75 Megohm
            •  9 volt test voltage powered by PP3 battery
            •  Made in Britain and America
            Part No.  Description
            222506   Wrist Strap Tester and Wallplate
            222504   Wrist Strap Tester                                             222506
            223001   Calibration Unit

            Download Technical Bulletin TB-7507                                                                       Test Equipment








                                               222504



            AC OUTLET ANALYSER AND
            WRIST STRAP TESTER

            •  Verifies proper AC outlet wiring and ground path integrity,
              enabling effectiveness of grounding products
            •  Internal audit tool; tests to practical resistance limits
            •  Convenient, easy to test wrist strap at lab or workstation
            •  Made in America
            Part No.  Description
            224713   AC Outlet Analyser and Wrist Strap Tester, UK Plug
            224714   AC Outlet Analyser and Wrist Strap Tester, Euro Plug  224713
            Download Technical Bulletin TB-7509






            WRIST STRAP TESTER, 9V BATTERY

            •  Portable small package; supervisor can use to spot check users on shop floor
            •  For use with Single Wire Wrist Straps
            •  Battery powered 9 volt tester; no adapter needed
            •  Test results include fail low, pass, and fail high; if wrist strap fails,
              the operator will know if the failure is too high or too low                                    225220
            •  Test can be performed during normal use at the workstation; improved
              productivity, workers can test without having to leave the workstation
            •  Range: 800 Kilohm - 10 Megohm
            •  NIST calibrated with certificate; calibrated with accepted procedures and
              standards traceable to the National Institute of Standards and Technology
            •  For more information on calibration of Vermason products, see Calibration
            •  Made in America
            Part No.  Description
            225220   Wrist Strap Tester, 9 volt Battery




                  See our products being  Unit C, 4th Dimension, Fourth Avenue, Letchworth, Hertfordshire, SG6 2TD, United Kingdom  47
                  Made in Britain on our
                  web site: Click Here              Tel: +44 (0)1462 672005 • Fax: +44 (0)1462 670440
                                                   E-mail: Service@Vermason.co.uk • Web: Vermason.co.uk
   42   43   44   45   46   47   48   49   50   51   52
