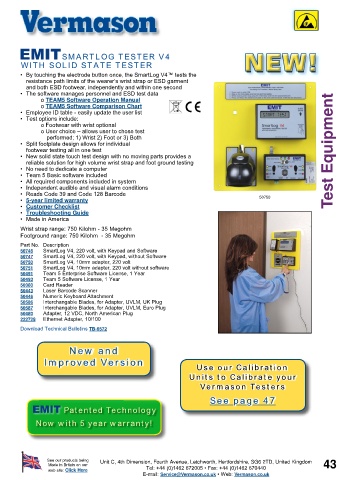

P. 43
SMARTLOG TESTER V4
WITH SOLID STATE TESTER
• By touching the electrode button once, the SmartLog V4™ tests the
resistance path limits of the wearer’s wrist strap or ESD garment
and both ESD footwear, independently and within one second
• The software manages personnel and ESD test data
o TEAM5 Software Operation Manual
o TEAM5 Software Comparison Chart
• Employee ID table - easily update the user list
• Test options include:
o Footwear with wrist optional
o User choice – allows user to chose test
performed; 1) Wrist 2) Foot or 3) Both
• Split footplate design allows for individual
footwear testing all in one test Test Equipment
• New solid state touch test design with no moving parts provides a
reliable solution for high volume wrist strap and foot ground testing
• No need to dedicate a computer
• Team 5 Basic software included
• All required components included in system
• Independent audible and visual alarm conditions
• Reads Code 39 and Code 128 Barcode
• 5-year limited warranty 50750
• Customer Checklist
• Troubleshooting Guide
• Made in America
Wrist strap range: 750 Kilohm - 35 Megohm
Footground range: 750 Kilohm - 35 Megohm
Part No. Description
50746 SmartLog V4, 220 volt, with Keypad and Software
50747 SmartLog V4, 220 volt, with Keypad, without Software
50750 SmartLog V4, 10mm adapter, 220 volt
50751 SmartLog V4, 10mm adapter, 220 volt without software
50491 Team 5 Enterprise Software License, 1 Year
50493 Team 5 Software License, 1 Year
50380 Card Reader
50443 Laser Barcode Scanner
50446 Numeric Keyboard Attachment
50586 Interchangable Blades, for Adapter, UVLM, UK Plug
50587 Interchangable Blades, for Adapter, UVLM, Euro Plug
50480 Adapter, 12 VDC, North American Plug
222728 Ethernet Adapter, 10/100
Download Technical Bulletins TB-6572
New and
Improved Version
Use our Calibration
Units to Calibrate your
Vermason Testers
See page 47
Patented Technology
Now with 5 year warranty!
