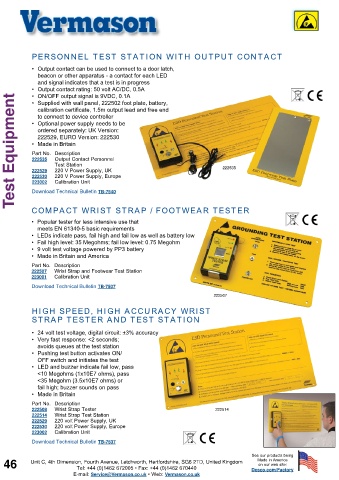

P. 46
PERSONNEL TEST STATION WITH OUTPUT CONTACT
• Output contact can be used to connect to a door latch,
beacon or other apparatus - a contact for each LED
and signal indicates that a test is in progress
• Output contact rating: 50 volt AC/DC, 0.5A
• ON/OFF output signal is 9VDC, 0.1A
Test Equipment
• Supplied with wall panel, 222502 foot plate, battery,
calibration certificate, 1.5m output lead and free end
to connect to device controller
• Optional power supply needs to be
ordered separately: UK Version:
222529, EURO Version: 222530
• Made in Britain
Part No. Description
222535 Output Contact Personnel
Test Station
222529 220 V Power Supply, UK 222535
222530 220 V Power Supply, Europe
223002 Calibration Unit
Download Technical Bulletin TB-7540
COMPACT WRIST STRAP / FOOTWEAR TESTER
• Popular tester for less intensive use that
meets EN 61340-5 basic requirements
• LEDs indicate pass, fail high and fail low as well as battery low
• Fail high level: 35 Megohms; fail low level: 0.75 Megohm
• 9 volt test voltage powered by PP3 battery
• Made in Britain and America
Part No. Description
222507 Wrist Strap and Footwear Test Station
223001 Calibration Unit
Download Technical Bulletin TB-7507
222507
HIGH SPEED, HIGH ACCURACY WRIST
STRAP TESTER AND TEST STATION
• 24 volt test voltage, digital circuit: ±3% accuracy
• Very fast response: <2 seconds;
avoids queues at the test station
• Pushing test button activates ON/
OFF switch and initiates the test
• LED and buzzer indicate fail low, pass
<10 Megohms (1x10E7 ohms), pass
<35 Megohm (3.5x10E7 ohms) or
fail high; buzzer sounds on pass
• Made in Britain
Part No. Description
222508 Wrist Strap Tester 222514
222514 Wrist Strap Test Station
222529 220 volt Power Supply, UK
222530 220 volt Power Supply, Europe
223002 Calibration Unit
Download Technical Bulletin TB-7537
