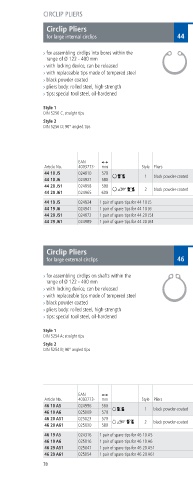

Page 133 - KNIPEX katalógus

CIRCLIP PLIERS

Circlip Pliers
for large internal circlips 44

> for assembling circlips into bores within the
range of Ø 122 00 mm
> with locking device, can be released
> with replaceable tips made of tempered steel
44 10 J6
> black powder coated

> pliers body: rolled steel, high strength
> tips: special tool steel, oil hardened
Style 1
DIN 5256 C, straight tips
Style 2
DIN 5256 D; 90° angled tips
44 20 J61
90°

EAN Size of bore Tips
Article No 003773 mm Style Pliers Ø mm Ø mm g
44 10 J5 02 910 570 122 300 3 5 1738
1 black powder coated
44 10 J6 02 927 580 252 00 5 1755
44 20 J51 02 958 590 122 300 3 5 1803
90° 2 black powder coated
44 20 J61 02 965 600 252 00 5 1723
44 19 J5 02 93 1 pair of spare tips for 10 J5
44 19 J6 02 9 1 1 pair of spare tips for 10 J6
44 29 J51 02 972 1 pair of spare tips for 20 J51
44 29 J61 02 989 1 pair of spare tips for 20 J61

Circlip Pliers
for large external circlips 46

> for assembling circlips on shafts within the
range of Ø 122 00 mm
> with locking device, can be released
> with replaceable tips made of tempered steel
> black powder coated
46 10 A5
> pliers body: rolled steel, high strength

> tips: special tool steel, oil hardened
Style 1
DIN 525 A; straight tips
Style 2
DIN 525 $; 90° angled tips

46 20 A61
90°

EAN Size of shaft Tips
Article No 003773 mm Style Pliers Ø mm Ø mm g
46 10 A5 02 996 560 122 300 3 5 1773
1 black powder coated
46 10 A6 025009 570 252 00 5 1795
46 20 A51 025023 570 122 300 3 5 1832
90° 2 black powder coated
46 20 A61 025030 580 252 00 5 1826
46 19 A5 02 316 1 pair of spare tips for 6 10 A5
46 19 A6 025016 1 pair of spare tips for 6 10 A6
46 29 A51 0250 7 1 pair of spare tips for 6 20 A51
46 29 A61 02505 1 pair of spare tips for 6 20 A61
78
