CIRCLIP PLIERS

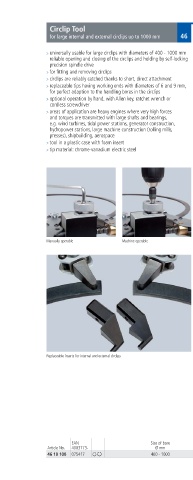

Circlip Tool
for large internal and external circlips up to 1000 mm 46

> universally usable for large circlips with diameters of 00 1000 mm
reliable opening and closing of the circlips and holding by self locking
precision spindle drive
> for fitting and removing circlips
> circlips are reliably catched thanks to short, direct attachment
> replaceable tips having working ends with diameters of 6 and 9 mm,
for perfect adaption to the handling bores in the circlips
> optional operation by hand, with Allen key, ratchet wrench or
cordless screwdriver
> areas of application are heavy engines where very high forces
and torques are transmitted with large shafts and bearings,
e g wind turbines, tidal power stations, generator construction,
hydropower stations, large machine construction (rolling mills,
presses), shipbuilding, aerospace
> tool in a plastic case with foam insert
> tip material: chrome vanadium electric steel 46 10 100

Manually operable Machine operable

Replaceable inserts for internal and external circlips

EAN Size of bore Size of shaft
Article No 003773 Ø mm Ø mm g
46 10 100 075 17 00 1000 00 1000 2200
