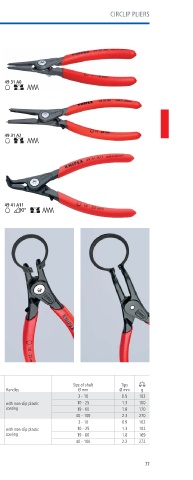

CIRCLIP PLIERS

0QY CNUQ YKVJ QXGTUVTGVEJKPI NKOKVGT
For all circlips with a diameter of 8 - 100 mm

> with overstretching limiter for standardized assembly 49 31 A0
according to DIN 71

> the adjustable stop screw prevents overexpansion
> adjustment using hexagonal screw
> ideal for series production as excessive expansion
of rings is effectively prevented

Style 3
DIN 525 A; straight tips;
49 31 A2
Style 4
DIN 525 $; 90° angled tips

49 41 A11
90°

KNIPEX Precision Circlip Pliers with overexpansion guard
For the standardized fitting of circlips in the industrial serial production
Particularly manufacturers of sensitive, safety relevant components (e g brakes
or gears) highly appreciate the compliance of DIN 71 and 72 The mounting
of circlip rings in this case requires pliers with overexpansion guard or a cone
KNIPEX Circlip Pliers with overexpansion guard meet the requirements and
furthermore offer a superior durability

EAN Size of shaft Tips
Article No 003773 mm Style Pliers Handles Ø mm Ø mm g
49 31 A0 0617 8 1 0 3 10 0 9 103
49 31 A1 073895 1 0 with non slip plastic 10 25 1 3 100
3 grey atramentized
49 31 A2 073901 180 coating 19 60 1 8 170
49 31 A3 073918 225 0 100 2 3 270
49 41 A01 061755 130 3 10 0 9 102
49 41 A11 079606 130 with non slip plastic 10 25 1 3 102
90° grey atramentized
49 41 A21 079613 165 coating 19 60 1 8 169
49 41 A31 079620 210 0 100 2 3 272

Precision Circlip Pliers Sets see page 82 77
