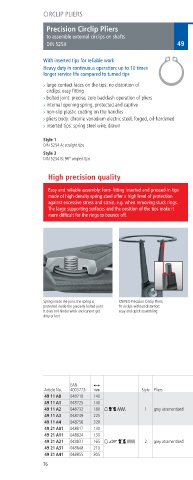

CIRCLIP PLIERS

Precision Circlip Pliers
to assemble external circlips on shafts
DIN 5254 49

With inserted tips for reliable work
*GCX[ FWV[ KP EQPVKPWQWU QRGTCVKQP WR VQ VKOGU
NQPIGT UGTXKEG NKHG EQORCTGF VQ VWTPGF VKRU
> large contact faces on the tips: no distortion of 49 11 A2
circlips, easy fitting
> bolted joint: precise, zero backlash operation of pliers
> internal opening spring, protected and captive
> non slip plastic coating on the handles
> pliers body: chrome vanadium electric steel, forged, oil hardened
> inserted tips: spring steel wire, drawn

Style 1
DIN 525 A; straight tips
49 21 A21
Style 2 90°
DIN 525 $; 90° angled tips

High precision quality

Easy and reliable assembly: form-fitting inserted and pressed-in tips
OCFG QH JKIJ FGPUKV[ URTKPI UVGGN QHHGT C JKIJ NGXGN QH RTQVGEVKQP
CICKPUV GZEGUUKXG UVTGUU CPF UVTCKP G I YJGP TGOQXKPI UVWEM TKPIU
The large supporting surfaces and the position of the tips make it
more difficult for the rings to bounce off.

Precision and durability
High density spring steel with a score free surface is used for the tips
This increases the tips‘ resistance to dynamic and static strain The tips
are 30 % more stable than conventional pliers when subjected to one off
overloading while still allowing good accessibility during assembly
Subjected to dynamic strain, the tips‘ resistance capacity is up to 10 times
greater The tips on the precision circlip pliers are non detachable

Spring inside the joint: the spring is KNIPEX Precision Circlip Pliers:
protected inside the precisely bolted joint fit circlips without distortion;
It does not hinder work and cannot get easy and quick assembling
dirty or lost

Sturdy, inserted tips: Tight fit through compression
made from high density spring steel

EAN Size of shaft Tips
Article No 003773 mm Style Pliers Handles Ø mm Ø mm g
49 11 A0 0 8718 1 0 3 10 0 9 101
49 11 A1 0 8725 1 0 10 25 1 3 100
with non slip plastic
49 11 A2 0 8732 180 1 grey atramentized coating 19 60 1 8 170
49 11 A3 0 87 9 225 0 100 2 3 270
49 11 A4 0 8756 320 85 1 0 3 2 599
49 21 A01 0 8817 130 3 10 0 9 100
49 21 A11 0 882 130 10 25 1 3 102
with non slip plastic
49 21 A21 0 8831 165 90° 2 grey atramentized coating 19 60 1 8 169
49 21 A31 0 88 8 210 0 100 2 3 272
49 21 A41 0 8855 305 85 1 0 3 2 601
