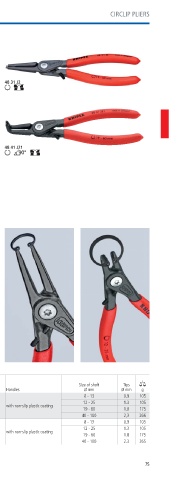

CIRCLIP PLIERS

0QY CNUQ YKVJ QXGTUVTGVEJKPI NKOKVGT
For all circlips with a diameter of 8 - 100 mm

> with overstretching limiter for standardized assembly 48 31 J2
according to DIN 72

> the adjustable stop screw prevents overexpansion
> adjustment using hexagonal screw
> ideal for series production as excessive expansion
of rings is effectively prevented

Style 3
DIN 5256 C, straight tips
Style 4
DIN 5256 D; 90° angled tips
48 41 J21
90°

KNIPEX Precision Circlip Pliers with overexpansion guard
For the standardized fitting of circlips in the industrial serial production
Particularly manufacturers of sensitive, safety relevant components (e g brakes
or gears) highly appreciate the compliance of DIN 71 and 72 The mounting
of circlip rings in this case requires pliers with overexpansion guard or a cone
KNIPEX Circlip Pliers with overexpansion guard meet the requirements and
furthermore offer a superior durability

EAN Size of shaft Tips
Article No 003773 mm Style Pliers Handles Ø mm Ø mm g
48 31 J0 079552 1 0 8 13 0 9 105
48 31 J1 07386 1 0 12 25 1 3 105
3 grey atramentized with non slip plastic coating
48 31 J2 073871 180 19 60 1 8 175
48 31 J3 073888 225 0 100 2,3 266
48 41 J01 079569 130 8 13 0 9 105
48 41 J11 079576 130 12 25 1 3 105
90° grey atramentized with non slip plastic coating
48 41 J21 0796 0 165 19 60 1 8 175
48 41 J31 079590 210 0 100 2 3 265

Precision Circlip Pliers Sets see page 82 75
