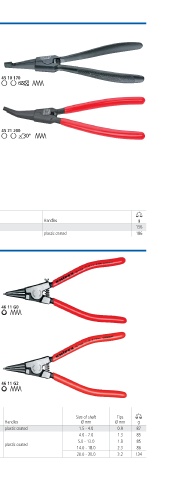

Page 138 - KNIPEX katalógus

CIRCLIP PLIERS

Special Retaining Ring Pliers
for retaining rings on shafts
DIN ISO 5743 45

> for fitting horseshoe shaped spring
retaining rings and circlips without
grip holes
> for shaft retaining devices 45 10 170
> with opening spring
> Chrome vanadium electric steel, forged, oil hardened

45 10 170
for retaining rings with a minimum ring split gap of 3 6 mm
45 21 200
angled jaws with centering hole; for snap rings larger than 12 0 mm dia ,
e g for securing cardan shafts in a motor vehicle; minimum ring split gap 45 21 200
of the rings 2 2 mm 30°

5 10 170 5 21 200 5 21 200

EAN
Article No 003773 mm Pliers Handles g
45 10 170 017370 170 burnished 156
45 21 200 031208 200 30° burnished plastic coated 186

Circlip Pliers
for grip rings on shafts
DIN ISO 5743 46

> for fitting grip rings on shafts from 1 5 30 mm dia
> with opening spring
> solid style, forged
> non slip, solid tips 46 11 G0
> pliers body and tips: chrome vanadium electric steel,
forged, oil hardened

46 11 G0
for rings of 1 5 0 mm dia , with adjustable stop
screw to prevent overstretching

46 11 G2

EAN Size of shaft Tips
Article No 003773 mm Pliers Head Handles Ø mm Ø mm g
46 11 G0 0 7896 1 0 black atramentized polished plastic coated 1 5 0 0 9 87
46 11 G1 031062 1 0 0 7 0 1 3 85
46 11 G2 031079 1 0 5 0 13 0 1 8 85
black atramentized polished plastic coated
46 11 G3 031086 1 0 1 0 18 0 2 3 86
46 11 G4 031093 180 20 0 30 0 3 2 13
80
