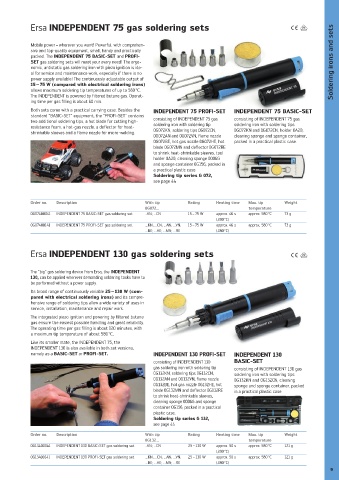

Page 9 - ERSA

Ersa INDEPENDENT 75 gas soldering sets

Mobile power – wherever you want! Powerful, with comprehen-
sive and top-quality equipment, small, handy and practically
packed. The INDEPENDENT 75 BASIC-SET and PROFI-
SET gas soldering sets will meet your every need! The ergo- Soldering irons and sets
nomic, antistatic gas soldering iron with piezo ignition is ide-
al for service and maintenance work, especially if there is no
power supply available! The continuously adjustable output of
15 – 75 W (compared with electrical soldering irons)
allows maximum soldering tip temperatures of up to 580 °C.
The INDEPENDENT is powered by filtered butane gas. Operat-
ing time per gas filling is about 60 min.
Both sets come with a practical carrying case. Besides the INDEPENDENT 75 PROFI-SET INDEPENDENT 75 BASIC-SET
standard “BASIC-SET” equipment, the “PROFI-SET” contains
two additional soldering tips, a hot blade for cutting high- consisting of INDEPENDENT 75 gas consisting of INDEPENDENT 75 gas
resistance foam, a hot-gas nozzle, a deflector for heat- soldering iron with soldering tip soldering iron with soldering tips
shrinkable sleeves and a flame nozzle for micro-welding. 0G072KN, soldering tips 0G072CN, 0G072KN and 0G072CN, holder 0A20,
0G072AN and 0G072VN, flame nozzle cleaning sponge and sponge container,
0G072BE, hot gas nozzle 0G072HE, hot packed in a practical plastic case.
blade 0G072MN and deflector 0G072RE
to shrink heat-shrinkable sleeves, tool
holder 0A20, cleaning sponge 0006G
and sponge container 0G156, packed in
a practical plastic case.
Soldering tip series G 072,
see page 44

Order no. Description With tip Rating Heating time Max. tip Weight
0G072... temperature
0G07400041 INDEPENDENT 75 BASIC-SET gas soldering set ..KN; ...CN 15 – 75 W approx. 46 s approx. 580 °C 73 g
(280°C)
0G07400141 INDEPENDENT 75 PROFI-SET gas soldering set ...KN; ...CN; ...AN; ...VN; 15 – 75 W approx. 46 s approx. 580 °C 73 g
...BE; ...HE; ...MN; ...RE (280°C)

Ersa INDEPENDENT 130 gas soldering sets

The “big” gas soldering device from Ersa, the INDEPENDENT
130, can be applied wherever demanding soldering tasks have to
be performed without a power supply.
Its broad range of continuously variable 25 – 130 W (com-
pared with electrical soldering irons) and its compre-
hensive range of soldering tips allow a wide variety of uses in
service, installation, maintenance and repair work.
The integrated piezo ignition and powering by filtered butane
gas ensure the easiest possible handling and great reliability.
The operating time per gas filling is about 120 minutes, with
a maximum tip temperature of about 580 °C.
Like its smaller mate, the INDEPENDENT 75, the
INDEPENDENT 130 is also available in both set versions,
namely as a BASIC-SET or PROFI-SET. INDEPENDENT 130 PROFI-SET INDEPENDENT 130
consisting of INDEPENDENT 130 BASIC-SET
gas soldering iron with soldering tip consisting of INDEPENDENT 130 gas
0G132KN, soldering tips 0G132CN, soldering iron with soldering tips
0G132AN and 0G132VN, flame nozzle 0G132KN and 0G132CN, cleaning
0G132BE, hot gas nozzle 0G132HE, hot sponge and sponge container, packed
blade 0G132MN and deflector 0G132RE in a practical plastic case.
to shrink heat-shrinkable sleeves,
cleaning sponge 0006G and sponge
container 0G156, packed in a practical
plastic case.
Soldering tip series G 132,
see page 44

Order no. Description With tip Rating Heating time Max. tip Weight
0G132... temperature
0G13400041 INDEPENDENT 130 BASIC-SET gas soldering set ..KN; ...CN 25 – 130 W approx. 50 s approx. 580 °C 121 g
(280°C)
0G13400141 INDEPENDENT 130 PROFI-SET gas soldering set ...KN; ...CN; ...AN; ...VN; 25 – 130 W approx. 50 s approx. 580 °C 121 g
...BE; ...HE; ...MN; ...RE (280°C)
9
