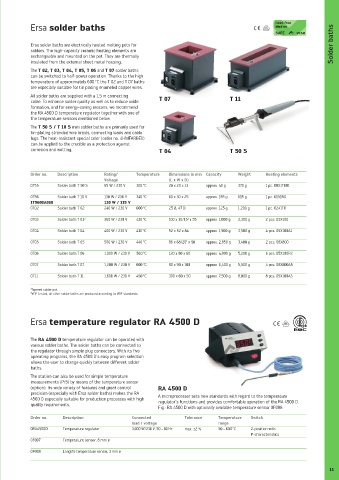

Ersa solder baths

Ersa solder baths are electrically heated melting pots for Solder baths
solders. The high-capacity ceramic heating elements are
exchangeable and mounted on the pot. They are thermally
insulated from the external sheet metal housing.
The T 02, T 03, T 04, T 05, T 06 and T 07 solder baths
can be switched to half-power operation. Thanks to the high
temperature of approximately 600 °C the T 02 and T 07 baths
are especially suitable for tin plating enameled copper wires.
All solder baths are supplied with a 1.5 m connecting T 07 T 11
cable. To enhance solder quality as well as to reduce oxide
formation, and for energy-saving reasons, we recommend
the RA 4500 D temperature regulator together with one of
the temperature sensors mentioned below.
The T 50 S / T 10 S mini solder baths are primarily used for
tin-plating stranded wire braids, connecting leads and cable
lugs. The heat-resistant special color (order no. 4HMFARBE1)
can be applied to the crucible as a protection against
corrosion and wetting. T 04 T 50 S

Order no. Description Rating/ Temperature Dimensions in mm Capacity Weight Heating elements
Voltage (L x W x D)
0T55 Solder bath T 50 S 65 W / 230 V 300 °C 28 x 20 x 13 approx. 40 g 370 g 1 pc. 0051T001

0T56 Solder bath T 10 S 130 W / 230 V 340 °C 60 x 30 x 25 approx. 185 g 615 g 1 pc. 0151B0
1T5600A068 130 W / 115 V
0T02 Solder bath T 02 240 W / 230 V 600 °C 25 Ø; 47 D approx. 125 g 1,200 g 1 pc. 0241T0

0T03 Solder bath T 03 2 360 W / 230 V 430 °C 100 x 30/15 x 55 approx. 1,000 g 2,300 g 2 pcs. 05X100
1
0T04 Solder bath T 04 400 W / 230 V 410 °C 52 x 52 x 84 approx. 1,900 g 3,900 g 4 pcs. 05X100A1
0T05 Solder bath T 05 500 W / 230 V 440 °C 86 x 68/20 x 90 approx. 2,850 g 3,400 g 2 pcs. 08X800
1
0T06 Solder bath T 06 1,000 W / 230 V 560 °C 120 x 80 x 60 approx. 4,800 g 5,200 g 6 pcs. 05X100P2

0T07 Solder bath T 07 1,200 W / 230 V 600 °C 90 x 90 x 100 approx. 6,400 g 5,500 g 4 pcs. 08X800A5
0T11 Solder bath T 11 1,600 W / 230 V 450 °C 300 x 60 x 50 approx. 7,500 g 8,000 g 8 pcs. 05X100A3

1 Tapered solder pot.
2 VDE tested, all other solder baths are produced according to VDE standards.

Ersa temperature regulator RA 4500 D

The RA 4500 D temperature regulator can be operated with
various solder baths. The solder baths can be connected to
the regulator through simple plug connectors. With its five
operating programs, the RA 4500 D’s easy program selection
allows the user to change quickly between different solder
baths.
The station can also be used for simple temperature
measurements (Pr5) by means of the temperature sensor
(option). Its wide variety of features and great control RA 4500 D
precision (especially with Ersa solder baths) makes the RA A microprocessor sets new standards with regard to the temperature
4500 D especially suitable for production processes with high regulator´s functions and provides comfortable operation of the RA 4500 D.
quality requirements.
Fig.: RA 4500 D with optionally available temperature sensor 0F008
Order no. Description Connected Tolerance Temperature Switch
load / voltage range
0RA4500D Temperature regulator 3,000 W/230 V, 50 – 60 Hz max. ±2 % 50 – 600 °C 2-position with
P-characteristics
0F007 Temperature sensor, 8 mm ø
0F008 Longlife temperature sensor, 3 mm ø
