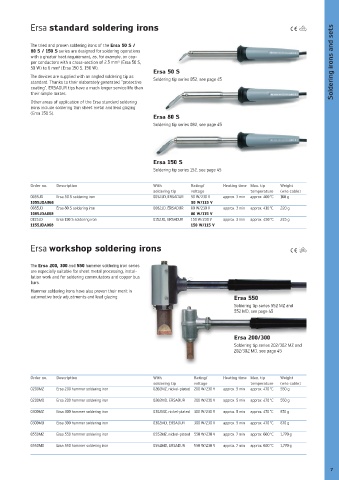

Ersa standard soldering irons

The tried and proven soldering irons of the Ersa 50 S /
80 S / 150 S series are designed for soldering operations
with a greater heat requirement, as, for example, on cop-
per conductors with a cross-section of 2.5 mm² (Ersa 50 S, Soldering irons and sets
50 W) to 6 mm² (Ersa 150 S, 150 W).
Ersa 50 S
The devices are supplied with an angled soldering tip as Soldering tip series 052, see page 45
standard. Thanks to their elaborately generated “protective
coating”, ERSADUR tips have a much longer service life than
their simple mates.
Other areas of application of the Ersa standard soldering
irons include soldering thin sheet metal and lead glazing
(Ersa 150 S).
Ersa 80 S
Soldering tip series 082, see page 45

Ersa 150 S
Soldering tip series 152, see page 45

Order no. Description With Rating/ Heating time Max. tip Weight
soldering tip voltage temperature (w/o cable)
0055JD Ersa 50 S soldering iron 0052JD, ERSADUR 50 W/230 V approx. 3 min approx. 400 °C 160 g
1055JDA068 50 W/115 V
0085JD Ersa 80 S soldering iron 0082JD, ERSADUR 80 W/230 V approx. 3 min approx. 410 °C 220 g
1085JDA068 80 W/115 V
0155JD Ersa 150 S soldering iron 0152JD, ERSADUR 150 W/230 V approx. 3 min approx. 450 °C 245 g
1155JDA068 150 W/115 V

Ersa workshop soldering irons

The Ersa 200, 300 and 550 hammer soldering iron series
are especially suitable for sheet metal processing, instal-
lation work and for soldering commutators and copper bus
bars.
Hammer soldering irons have also proven their merit in
automotive body adjustments and lead glazing. Ersa 550
Soldering tip series 552 MZ and
552 MD, see page 45

Ersa 200/300
Soldering tip series 202/302 MZ and
202/302 MD, see page 45

Order no. Description With Rating/ Heating time Max. tip Weight
soldering tip voltage temperature (w/o cable)
0200MZ Ersa 200 hammer soldering iron 0202MZ, nickel-plated 200 W/230 V approx. 5 min approx. 470 °C 550 g
0200MD Ersa 200 hammer soldering iron 0202MD, ERSADUR 200 W/230 V approx. 5 min approx. 470 °C 550 g

0300MZ Ersa 300 hammer soldering iron 0302MZ, nickel-plated 300 W/230 V approx. 5 min approx. 470 °C 870 g
0300MD Ersa 300 hammer soldering iron 0302MD, ERSADUR 300 W/230 V approx. 5 min approx. 470 °C 870 g

0550MZ Ersa 550 hammer soldering iron 0552MZ, nickel-plated 550 W/230 V approx. 7 min approx. 600 °C 1,770 g
0550MD Ersa 550 hammer soldering iron 0552MD, ERSADUR 550 W/230 V approx. 7 min approx. 600 °C 1,770 g
