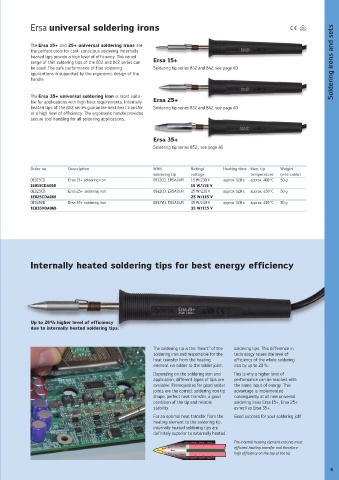

Ersa universal soldering irons

The Ersa 15+ and 25+ universal soldering irons are
the perfect tools for cost-conscious soldering. Internally
heated tips provide a high level of efficiency. The varied Ersa 15+
range of thin soldering tips of the 832 and 842 series can Soldering irons and sets
be used. The safe performance of fine soldering Soldering tip series 832 and 842, see page 40
applications is supported by the ergonomic design of the
handle.

The Ersa 35+ universal soldering iron is most suita-
ble for applications with high heat requirements. Internally Ersa 25+
heated tips of the 852 series guarantee best heat transfer Soldering tip series 832 and 842, see page 40
at a high level of efficiency. The ergonomic handle provides
secure tool handling for all soldering applications.

Ersa 35+
Soldering tip series 852 , see page 40

Order no. Description With Rating/ Heating time Max. tip Weight
soldering tip voltage temperature (w/o cable)
0E015CD Ersa 15+ soldering iron 0832CD, ERSADUR 15 W/230 V approx. 120 s approx. 400 °C 50 g
1E015CDA068 15 W/115 V
0E025CD Ersa 25+ soldering iron 0842CD, ERSADUR 25 W/230 V approx. 120 s approx. 450 °C 50 g
1E025CDA068 25 W/115 V
0E035VD Ersa 35+ soldering iron 0852VD, ERSADUR 35 W/230 V approx. 120 s approx. 450 °C 50 g
1E035VDA068 35 W/115 V

Internally heated soldering tips for best energy efficiency

Up to 20 % higher level of efficiency
due to internally heated soldering tips.

The soldering tip is the “heart” of the soldering tips. This difference in
soldering iron and responsible for the technology raises the level of
heat transfer from the heating efficiency of the whole soldering
element via solder to the solder joint. iron by up to 20 %.
Depending on the soldering iron and This is why a higher level of
application, different types of tips are performance can be reached with
available. Prerequisites for good solder the same input of energy. This
joints are the correct soldering iron tip advantage is implemented
shape, perfect heat transfer, a good consequently at all new universal
condition of the tip and reliable soldering irons Ersa 15+, Ersa 25+
stability. as well as Ersa 35+.
For an optimal heat transfer from the Good success for your soldering job!
heating element to the soldering tip,
internally heated soldering tips are
definitely superior to externally heated
The internal heating element ensures most
efficient heating transfer and therefore
high efficiency on the top of the tip.
