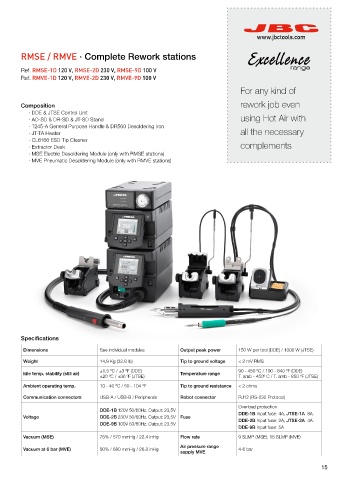

RMSE / RMVE · Complete Rework stations

Ref. RMSE-1D 120 V, RMSE-2D 230 V, RMSE-9D 100 V
Ref. RMVE-1D 120 V, RMVE-2D 230 V, RMVE-9D 100 V

For any kind of

Composition rework job even
· DDE & JTSE Control Unit
· AD-SD & DR-SD & JT-SD Stand using Hot Air with
· T245-A General Purpose Handle & DR560 Desoldering Iron
· JT-TA Heater all the necessary
· CL6166 ESD Tip Cleaner
· Extractor Desk complements
· MSE Electric Desoldering Module (only with RMSE stations)
· MVE Pneumatic Desoldering Module (only with RMVE stations)

Specifications

Dimensions See individual modules Output peak power 150 W per tool (DDE) / 1000 W (JTSE)

Weight 14,9 Kg (32.8 lb) Tip to ground voltage < 2 mV RMS
±1.5 ºC / ±3 ºF (DDE) 90 - 450 ºC / 190 - 840 ºF (DDE)
Idle temp. stability (still air) Temperature range
±20 ºC / ±36 ºF (JTSE) T. amb - 450º C / T. amb - 850 ºF (JTSE)
Ambient operating temp. 10 - 40 ºC / 50 - 104 ºF Tip to ground resistance < 2 ohms
Communication connectors USB-A / USB-B / Peripherals Robot connector RJ12 (RS-232 Protocol)
Overload protection
DDE-1B 120V 50/60Hz. Output: 23,5V
Voltage DDE-2B 230V 50/60Hz. Output: 23,5V Fuse DDE-1B Input fuse: 4A, JTSE-1A 8A.
DDE-2B Input fuse: 2A, JTSE-2A 4A.
DDE-9B 100V 50/60Hz. Output: 23,5V
DDE-9B Input fuse: 5A
Vacuum (MSE) 75% / 570 mmHg / 22.4 inHg Flow rate 9 SLMP (MSE), 15 SLMP (MVE)
Air pressure range
Vacuum at 6 bar (MVE) 90% / 680 mmHg / 26.8 inHg 4-6 bar
supply MVE
